Frymaster 35 Series manual Ferrule on thermopile unscrews from bottom of pilot

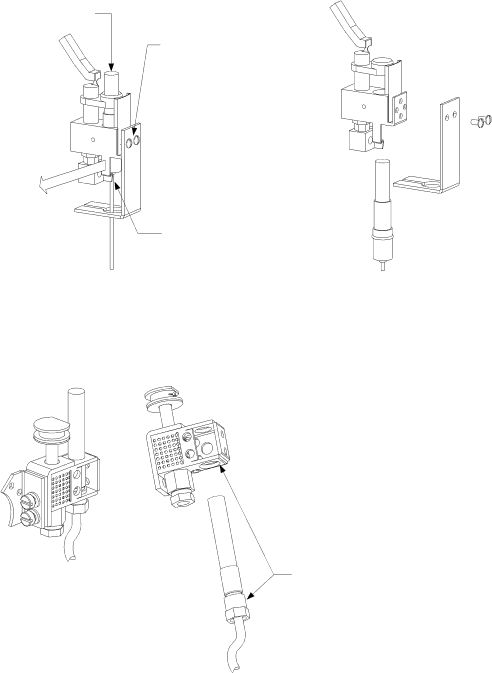

c:Press down on top of thermopile, forcing it out of the pilot bracket.

a:Remove these screws to release guard.

b:Bend this clip outward to release thermopile.

3.To replace only the thermopile in fryers with the current design pilot assembly (see illustration below), use a 7⁄16-inch open-end wrench to loosen the thermopile, then unscrew it from the pilot assembly. Screw the replacement into the pilot assembly and use a wrench to tighten it ¼-turn past finger tight.

Ferrule on thermopile unscrews from bottom of pilot.

3.To replace the complete pilot assembly of either design:

a.Disconnect the pilot tubing from the bottom of the pilot assembly.

b.Disconnect the thermopile lead(s) from the gas valve pilot coil.

c.Remove the screw(s) from the pilot-mounting bracket to release the pilot assembly.

d.Reverse steps a through c to install the replacement pilot assembly.

4.Reinstall the burner assembly by reversing steps 1-8 of Section 1.8.5.

1-9
