GE C2S980 Electrical Power Supply Requirements, Provide Proper Electrical Supply, Wall Mounted

Page 44

Instructions

Installationof the range.

Operating Instructions Safety

Electrical Power Supply Requirements

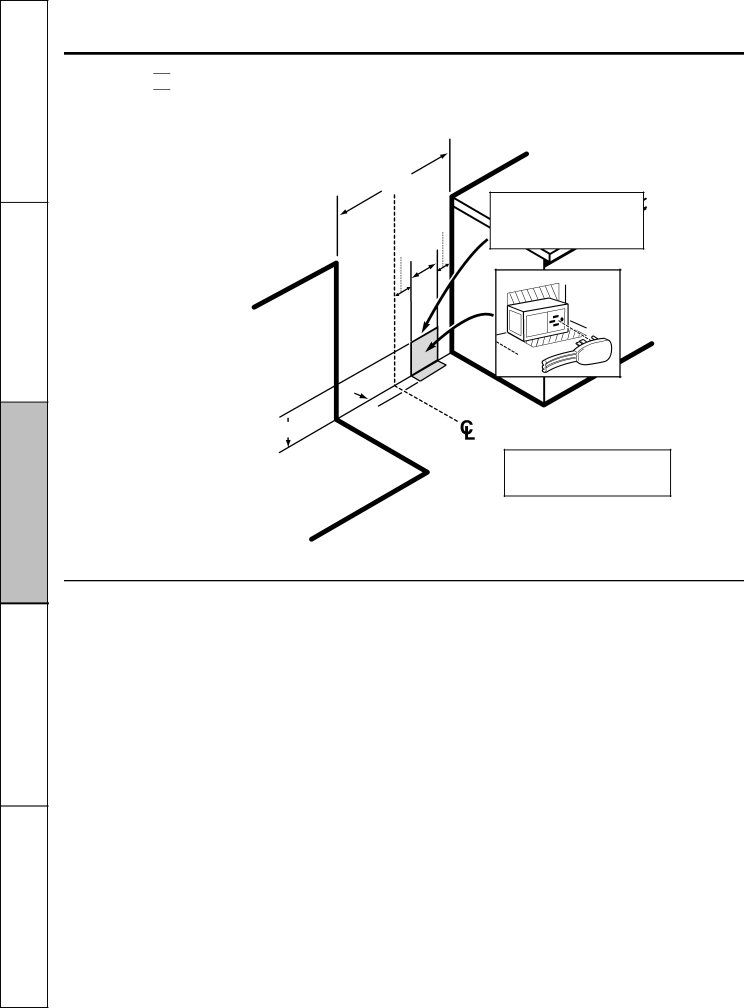

Recommended Electrical Outlet Locations

NOTE: Make electrical connections

on the right side of the cutout opening.

30

3

4

8

2-1/4 7-1/2

Recommended acceptable electrical outlet area. Orient the electrical receptacle so the length is parallel to the floor.

Wall Mounted

Installation

Instructions

Product is shipped with 4-prong plug. Recommended outlet is a NEMA 14-50R receptacle.

Consumer Support Troubleshooting Tips

Provide Proper Electrical Supply

These ranges must be suppliedwith 208/240 volt, 60 Hz., and connected to an individual, properly grounded circuit protected by a circuit breaker or time-delayfuse (40 amp).The receptaclemust be NEMA 14-50R to accept the 4-prong plug suppliedwith the range.

If the electrical service provided does not meet the above specifications, it is recommended that a licensed electrician install an approved outlet.

Locate the electric supply as illustrated.

44
