Page 9

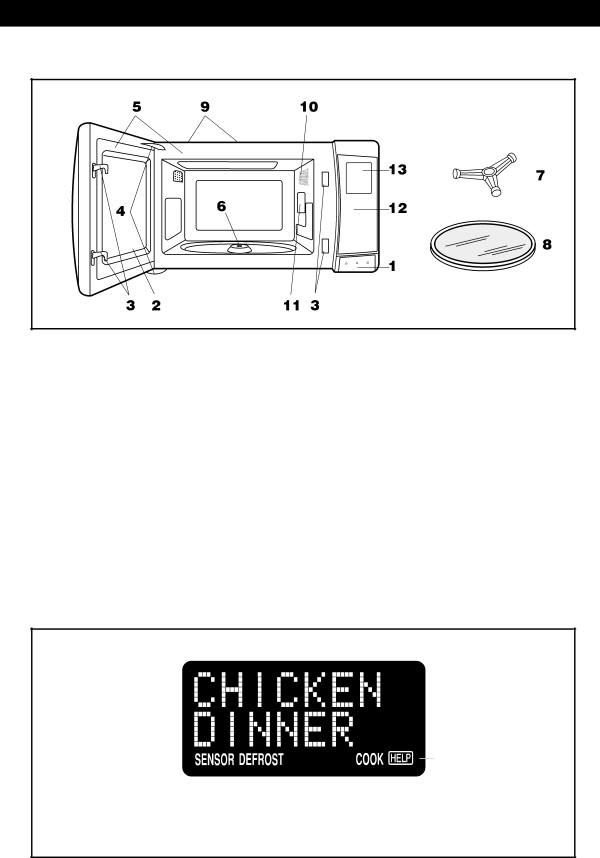

P A R T N A M E S

MICROWAVE OVEN PARTS

1One touch door open button Push to open door.

2Oven door with see-through window

3Safety door latches

The oven will not operate unless the door is securely closed.

4Door hinges

5Door seals and sealing surfaces

6Turntable motor shaft

7Removable turntable support

Carefully place the turntable support in the center of the oven floor.

8Removable turntable

Place the turntable on the turntable support securely. The turntable will rotate clockwise or counterclockwise. Only remove for cleaning.

9Ventilation openings (Rear)

10Oven light

It will light when oven is operating or door is open.

11Waveguide cover: DO NOT REMOVE.

12Auto-Touch control panel

13Time display: 99 minutes, 99 seconds

VISUAL DISPLAY

Indicators

The two-line, Interactive Display spells out operating steps and shows cooking hints. When HELP is lighted in the display, touch the Custom Help pad to read a specific hint which may assist you.
