Exmark 920 manual Motion Control Linkage Adjustment

Page 44

Maintenance

5.If adjustment is needed, loosen the nut against the yoke and while applying slight rearward pressure on the motion control lever, turn the head of the adjustment bolt in the appropriate direction until lever is centered (keeping rearward pressure on the lever will keep the pin at the end of the slot and allow the adjustment bolt to move the lever to the appropriate position). Tighten lock nut.

6.Repeat on opposite side of unit.

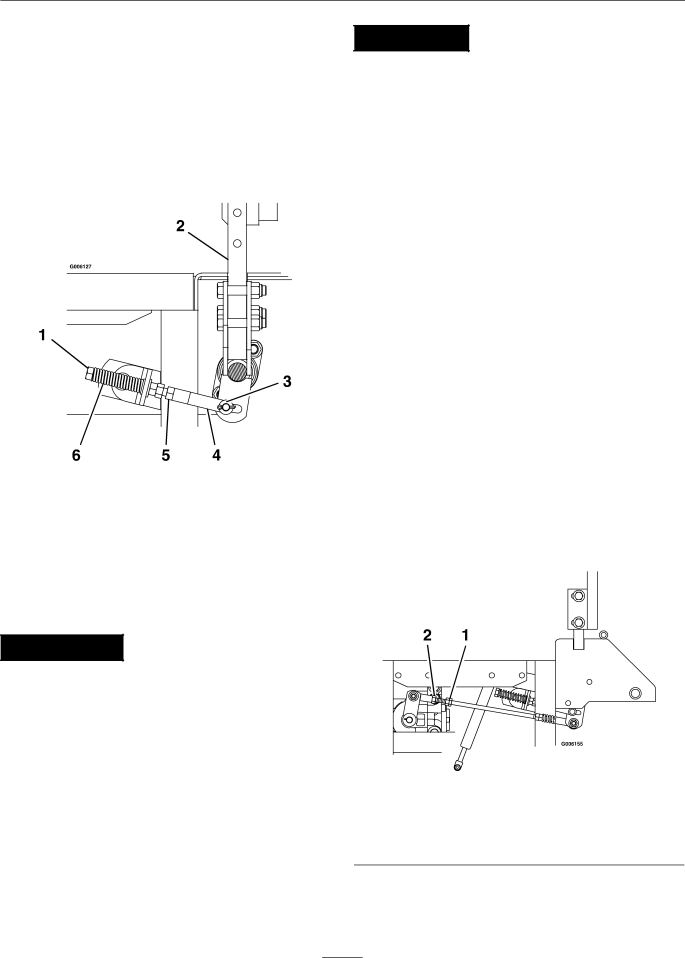

Figure 26

1.

Turn bolt here

4.

Yoke

2.

Lever centered in notch

5.

Loosen here

3.

End of slot

6.

Reverse indicator









Motion Control Linkage Adjustment

WARNING

Engine must be running and drive wheels must be turning so motion control adjustment can be performed. Contact with moving parts or hot surfaces may cause personal injury.

Keep fingers, hands, and clothing clear of rotating components and hot surfaces.

CAUTION

Raising the mower deck for service or maintenance relying solely on mechanical or hydraulic jacks could be dangerous. The mechanical or hydraulic jacks may not be enough support or may malfunction allowing the unit to fall, which could cause injury.

Do Not rely solely on mechanical or hydraulic jacks for support. Use adequate jack stands or equivalent support.

1.This adjustment must be made with the drive wheels turning. First raise the rear of machine up and support with jack stands (or equivalent support) just high enough to allow the drive wheels to rotate freely.

2.Unhook seat latch and tilt seat forward.

3.Remove the electrical connection from the seat safety switch, located directly to the left of the seat switch assembly beside the hydraulic oil reservoir.

Temporarily install a jumper wire across the terminals in the connector of the main wiring harness.

4.Run the unit at least 5 minutes with the drive levers at full forward speed to bring hydraulic system oil up to operating temperature.

5.Loosen lock nuts from the ball joints at each end of the pump control linkage (Figure 27).

Figure 27

Right-Hand Side of Unit

1. Turn here to adjust

2. Loosen here (right-hand



thread)

6.Start engine. Brake must be engaged and motion control levers out to start engine. Operator does not have to be in the seat

44

Image 44
