Alloy Computer Products 16/24 gigabit web managed switch, GSS-16T4SFP, GSS-24T4SFP 3. Operation of the Web Based Management

GSS Series User Manual

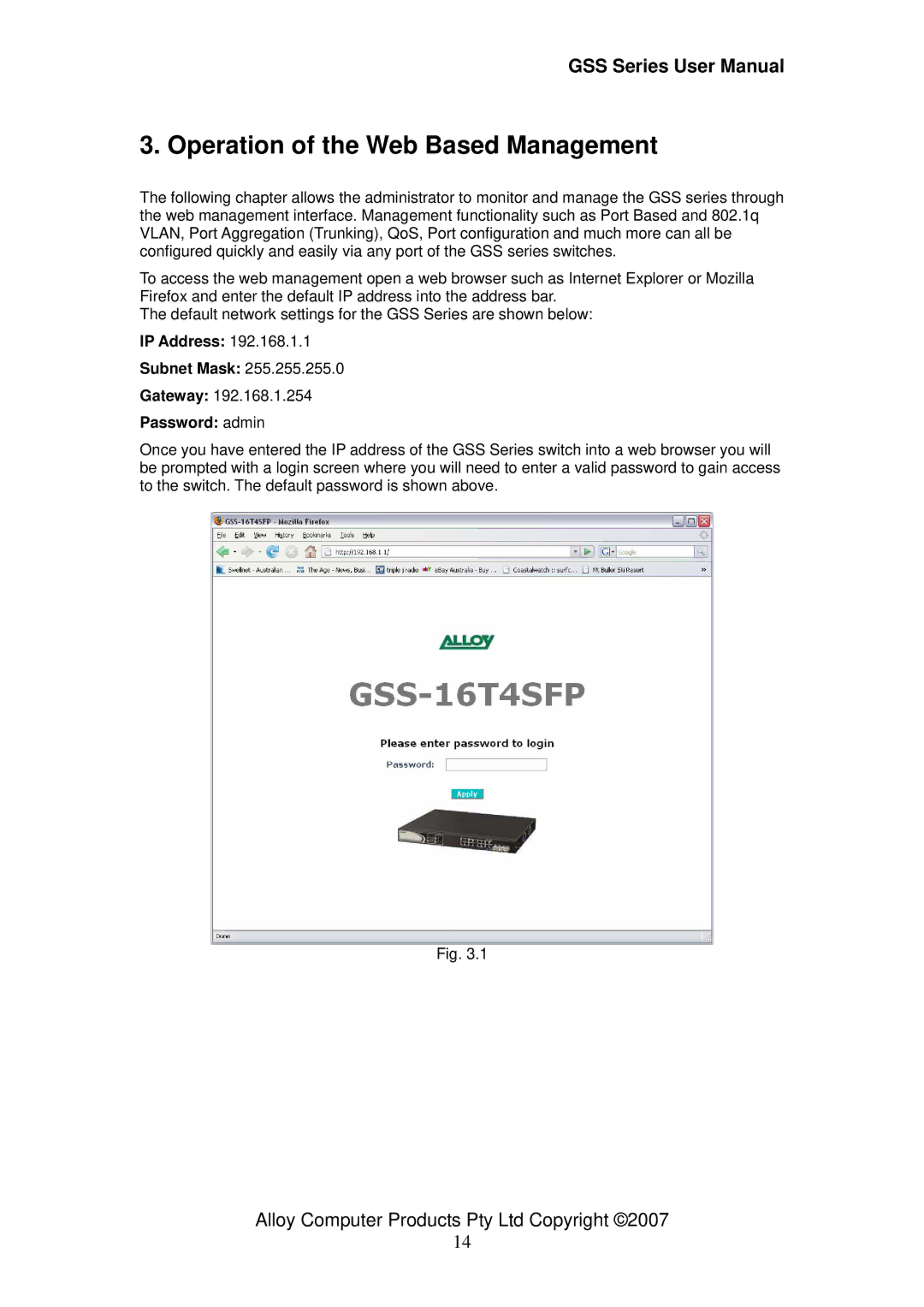

3. Operation of the Web Based Management
The following chapter allows the administrator to monitor and manage the GSS series through
the web management interface. Management functionality such as Port Based and 802.1q
VLAN, Port Aggregation (Trunking), QoS, Port configuration and much more can all be
configured quickly and easily via any port of the GSS series switches.
To access the web management open a web browser such as Internet Explorer or Mozilla
Firefox and enter the default IP address into the address bar.
The default network settings for the GSS Series are shown below:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.254
Password: admin
Once you have entered the IP address of the GSS Series switch into a web browser you will
be prompted with a login screen where you will need to enter a valid password to gain access
to the switch. The default password is shown above.
Fig. 3.1
Alloy Computer Products Pty Ltd Copyright ©2007
14
