GSS Series User Manual

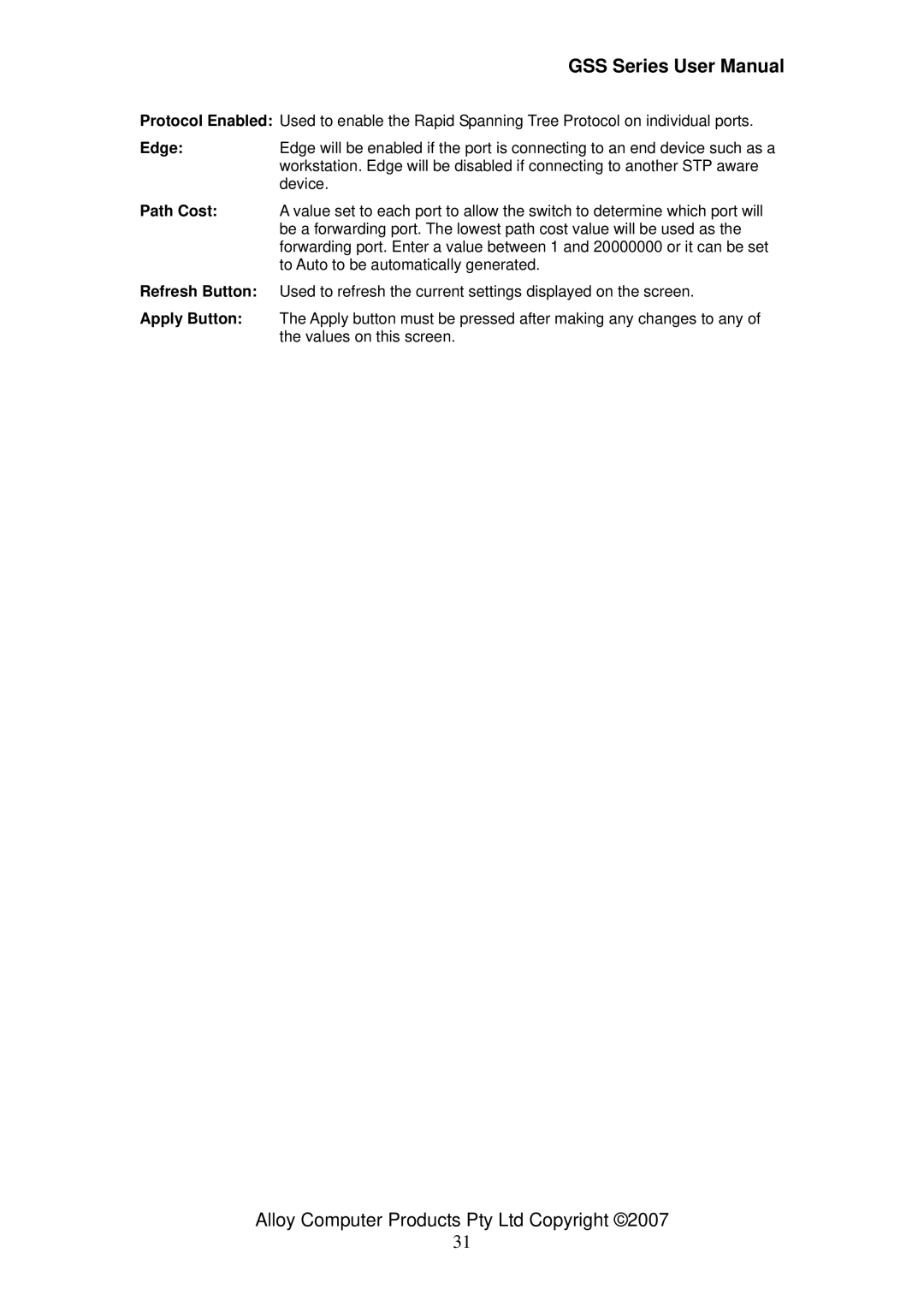

Protocol Enabled: Used to enable the Rapid Spanning Tree Protocol on individual ports.
Edge: Edge will be enabled if the port is connecting to an end device such as a
workstation. Edge will be disabled if connecting to another STP aware
device.
Path Cost: A value set to each port to allow the switch to determine which port will
be a forwarding port. The lowest path cost value will be used as the
forwarding port. Enter a value between 1 and 20000000 or it can be set
to Auto to be automatically generated.
Refresh Button: Used to refresh the current settings displayed on the screen.
Apply Button: The Apply button must be pressed after making any changes to any of
the values on this screen.
Alloy Computer Products Pty Ltd Copyright ©2007
31
