116 Removing and Installing Parts
• If you are removing but not replacing a card, see "Removing a PCI/PCI
Express Card" on page 120.
• If you are replacing a card, remove the current driver for the card from the
operating system.
Installing a PCI/PCI Express Card
1
Follow the procedures in "Before You Begin" on page 99.
2
Remove the computer cover. See"Removing the Computer Cover" on
page 101.
3

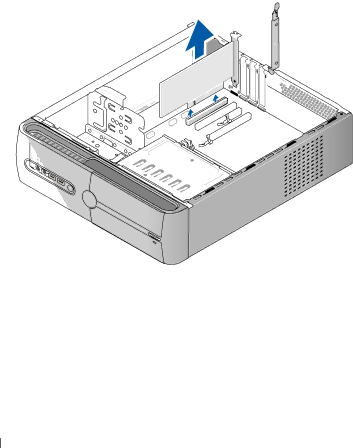

Release the card retention bracket by lifting the card retention release
lever up.
4
Remove the support bracket. See "Removing the Support Bracket" on
page 102.
1 card retention release lever 2 card retention bracket
2
1
