5If you are replacing a card that is already installed in the computer, remove the card.

If necessary, disconnect any cables connected to the card.

For PCI card, grasp the card by its top corners, and ease it out of its connector.

For PCI Express card, pull the securing tab, grasp the card by its top corners, and then ease it out of its connector.

2

1

3









4



5







1

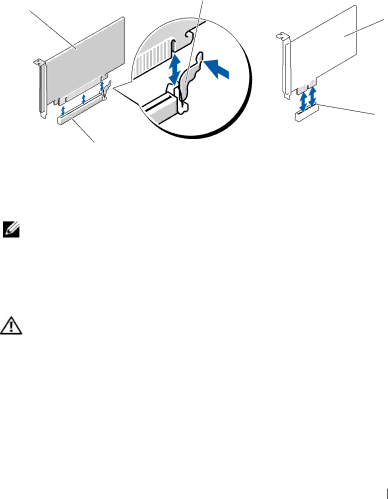

PCI Express x16 card

2

securing tab

3 PCI Express x1 card

4

PCI Express x1 card slot

5

PCI Express x16 card slot



NOTE: The position of the card you are replacing may vary from the illustration.

6Prepare the new card for installation.

See the documentation that came with the card for information on configuring the card, making internal connections, or otherwise customizing it for your computer.

CAUTION: Some network adapters automatically start the computer when they are connected to a network. To guard against electrical shock, be sure to unplug your computer from its electrical outlet before installing any cards.

7Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.

Removing and Installing Parts

117

Page 117
Image 117
Dell DCSLF manual 117
