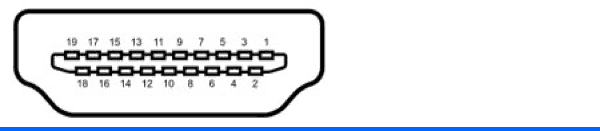

HDMI
Pin | Signal |
|
|
1 | Transition minimized differential signal (TDMS) data 2+ |
|
|
2 | Transition minimized differential signal (TDMS) data 2 shield |
|
|
3 | Transition minimized differential signal (TDMS) data 2- |
|
|
4 | Transition minimized differential signal (TDMS) data 1+ |
|
|
5 | Transition minimized differential signal (TDMS) data 1 shield |
|
|
6 | Transition minimized differential signal (TDMS) data 1 shield |
|
|
7 | Transition minimized differential signal (TDMS) data 0+ |
|
|
8 | Transition minimized differential signal (TDMS) data 0 shield |
|
|
9 | Transition minimized differential signal (TDMS) data 0- |
|
|
10 | Transition minimized differential signal (TDMS) Clock + |
|
|
11 | Transition minimized differential signal (TDMS) data clock shield |
|
|
12 | Transition minimized differential signal (TDMS) data clock- |
|
|
13 | Consumer electronics control (CEC) |
|
|
14 | No connect |
|
|
15 | Display data channel (DDC) clock |
|
|
16 | Display data channel (DDC) data |
|
|
17 | Ground |
|
|
18 | +5V Power |
|
|
19 | Hot plug detect |
|
|
