Removal and replacement procedures

Remove the system board:

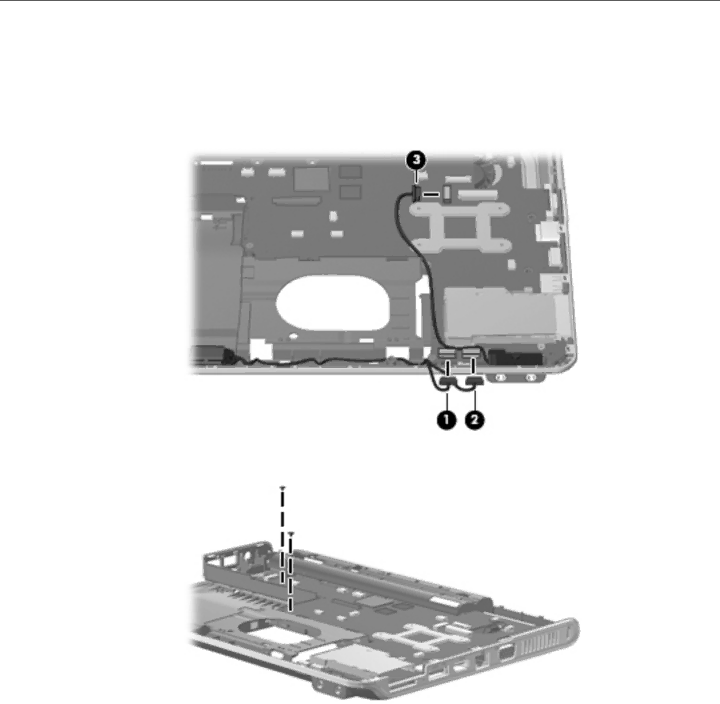

1.Disconnect the following cables from the system board: 1 LED board cable

2 Bluetooth module cable

3 Audio board cable

2. Remove the two Phillips PM2.0×4.0 screws that secure the system board to the base enclosure.
