Removal and Replacement Procedures

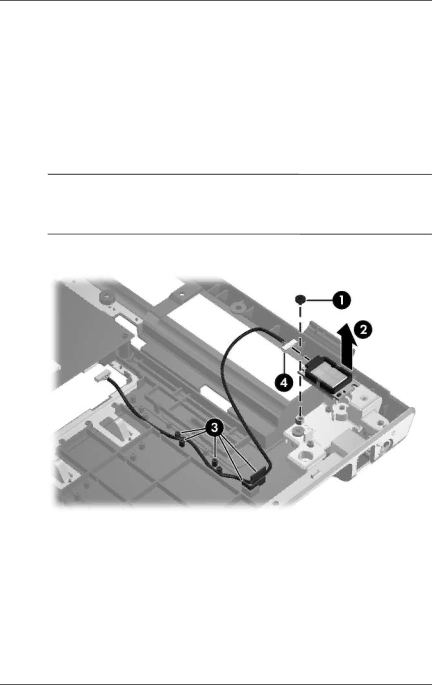

2.Remove the Phillips PM2.0×4.0 screw 1 that secures the Bluetooth module to the base enclosure.
3.Remove the Bluetooth module from the base enclosure 2.
4.Remove the Bluetooth module cable 3 from the routing channel in the base enclosure.
5.Disconnect the Bluetooth module cable 4 from the Bluetooth board.
✎The Bluetooth module cable is included with the Bluetooth module and is also available in the Cable Kit, spare part number
Removing the Bluetooth Board
Reverse the above procedure to install the Bluetooth board.
