Power button board
Description | Spare part number |
|
|
Power button board | |
|
|
Before removing the power button board, follow these steps:
1.Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2.Disconnect all external devices connected to the computer.
3.Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4.Remove the battery (see Battery on page 41), and then remove the following components:
a.Service access cover (see Service access cover on page 42.)
b.Keyboard (see Keyboard on page 62.)
c.Base enclosure (see Base enclosure on page 66.)
d.Top cover (see Top cover on page 71.)

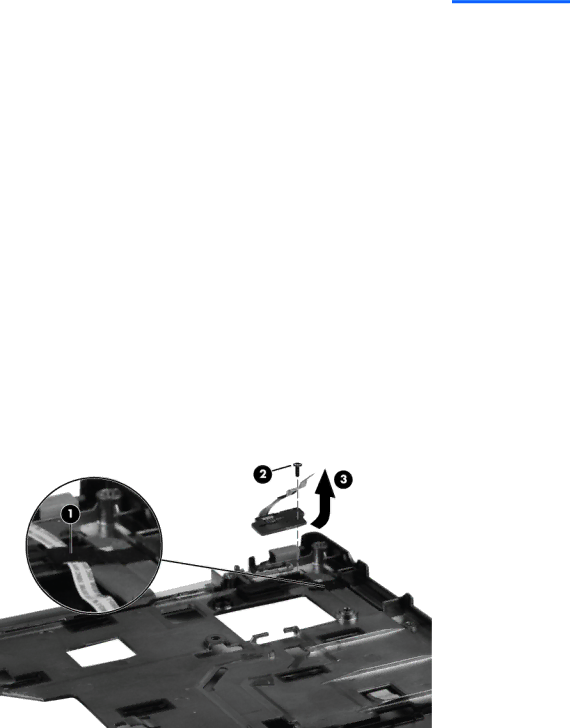

Remove the power button board:
1.Remove the tape (1) from the power button cable.
2.Remove the Phillips M2.0x3.0 screw (2) that secures the power button board to the top cover.
3.Slide the board and cable (3) out of the plastic clips.
Component replacement procedures 73
