5.12 Fan

Fan Spare Part Number Information

Fan

378233-001





1.Prepare the notebook for disassembly (Section 5.3).

2.Release the keyboard (Section 5.9).

3.Disconnect the fan cable 1 from the system board.

4.Loosen the 2 PM2.0×7.0 screws 2 that secure the fan to the notebook.

5.Remove the fan 3.

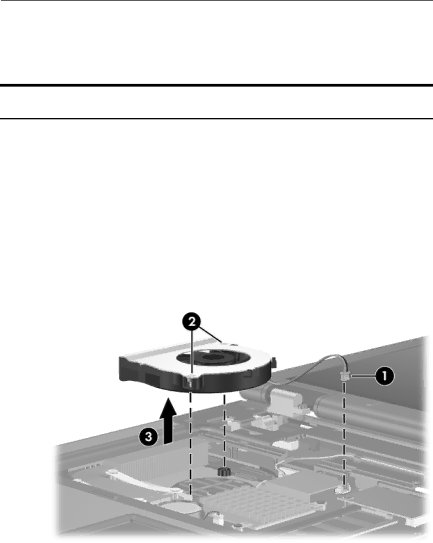

Removing the Fan

Reverse the above procedure to install the fan.
