Page 24
Operation
3.9.6Interpolation Software
Major frame grabber manufacturers with digital capability (Camera Link,
TABLE 7. Frame Grabber Interpolation Software List
Manufacturer | Frame Grabber | Software |
Matrox | Meteor II Digi, CL | MIL |
Bitflow | Road Runner CL | Bay View |
Coreco | T64 | Application software |
Data Cube | MaxRevolution | Visual Chip Studio |
Epix | PIXCI | Application software |
Euresys | GrabLink | Easygrab |
|
| EasyColor |
Matrix Vision | Impact |
3.9.7Color Interpolation

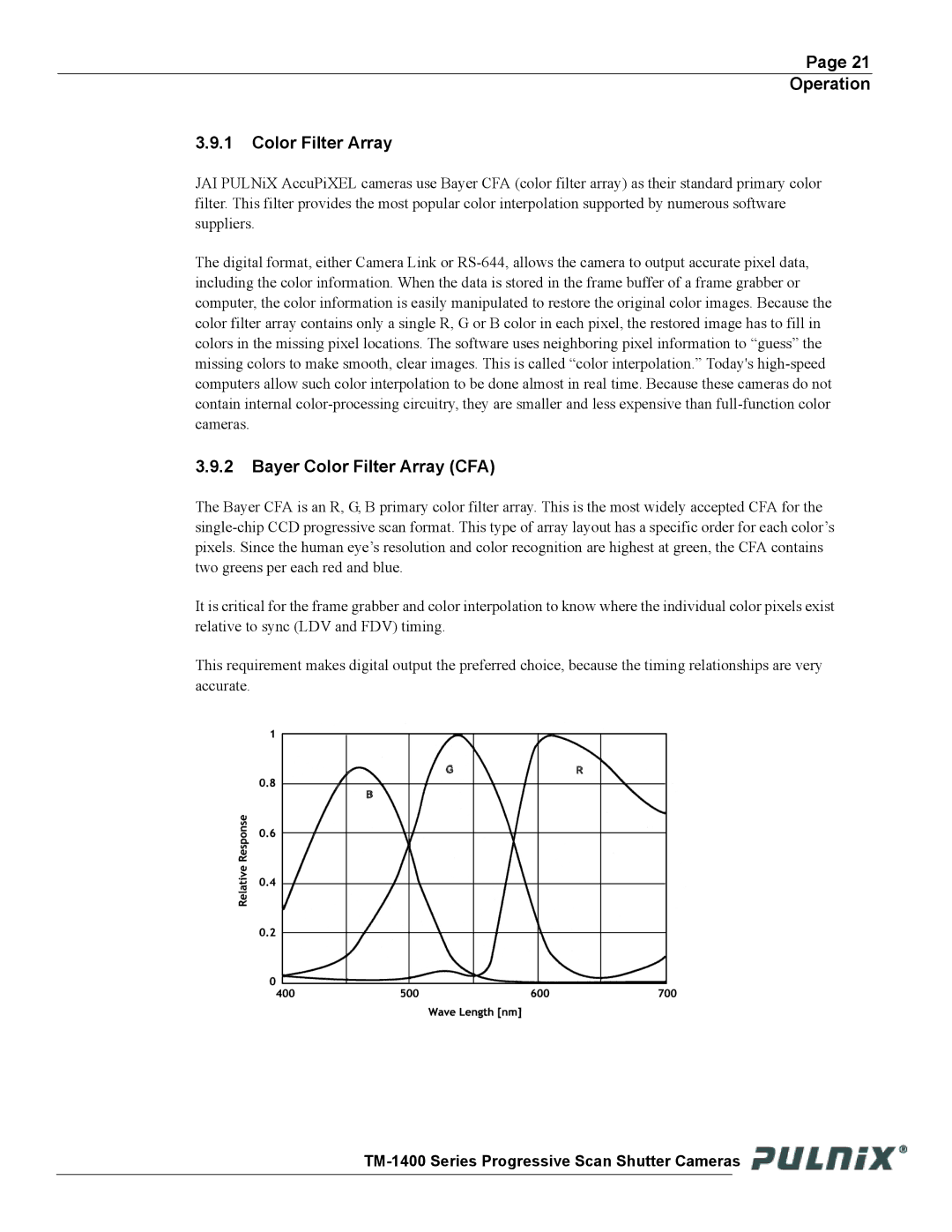

The Bayer pattern color filter array (CFA) consists of R, G, and B primary colors. Each pixel represents one of three colors. In order to display or print color images, the signal has to be converted to RGB output, which has three independent channels (outputs) and sync signals.
Color interpolation software or firmware performs the color preprocessing by filling the missing color pixels with neighboring pixels. It then separates the stream of data,
The image quality depends on the camera’s own pixel data (including pixel data independency from neighboring pixels, noise and color filter), and interpolation of the software algorithm such as 3 x 3 interpolation, 2 x 2 interpolation, color matrix, white balance capability, etc.
Green | Red | Green |
|
|
|
Blue | Green | Blue |
|
|
|
Green | Red | Green |
|
|
|
All AccuPiXEL color cameras are carefully designed for maximum color performance. JAI PULNiX strongly suggests that you use digital output for the best performance.
Some software is used on board (FPGA or DSP) to perform the interpolation. Other software simply uses the host computer’s memory and CPU. The process speed may vary depending on the architecture and speed of the computer.
