Manual flash operation

Use this mode for manual exposure while using a flash. For manual exposure photography, the flash becomes GN15 (ISO 100.m)/GN50 (ISO 100.ft) full emission.

flash-popup

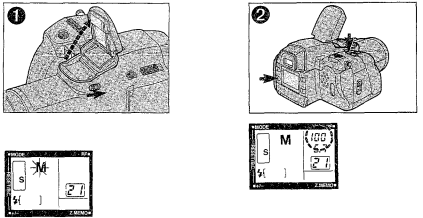

*Slide the flash switch to activate the flash.

—The flash will pop up.

*Set the camera on M (Manual) mode.

*While pressing the + / – button, press the shift button to set the shutter speed at 1/100 second or slower.

NOTE: With a shutter speed faster than 1 /100 second, the flash will not fire.

— 50 —
