Samsung ML-4050ND manual Installing Printer Software in Windows

Page 77

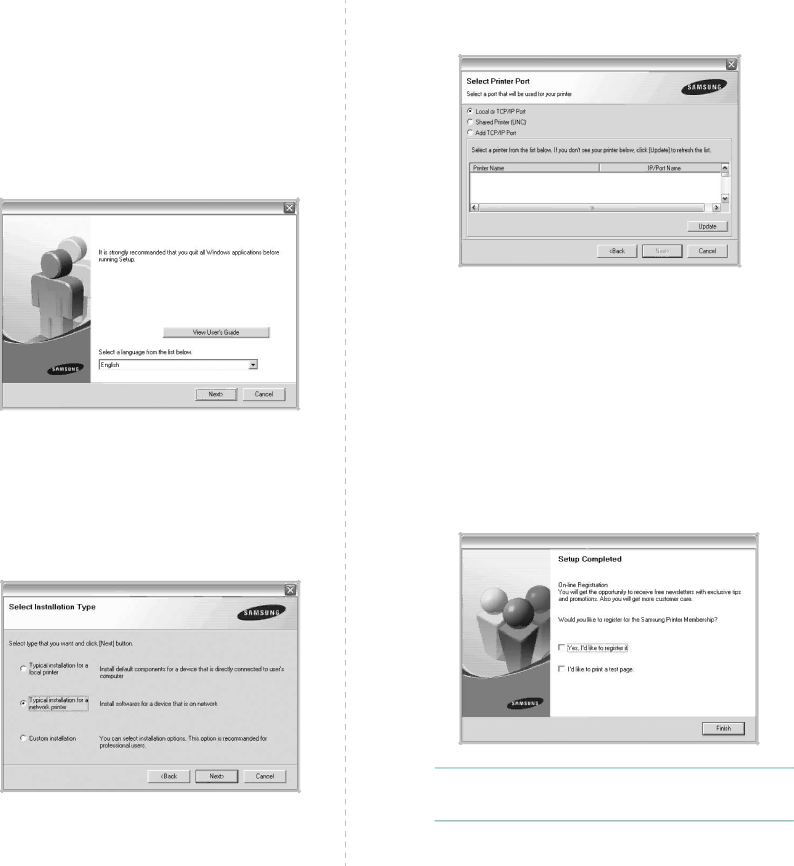

2Insert the supplied CD-ROM into your CD-ROM drive.

If you use Windows Vista, Windows 7 and Windows Server 2008 R2, when you are asked to allow the installation, click continue.

The CD-ROM should automatically run, and an installation window appears.

If the installation window does not appear, click Start and then Run. Type X:\Setup.exe, replacing “X” with the letter which represents your drive and click OK.

If you use Windows Vista, Windows 7 and Windows Server 2008 R2, click Start All Programs Accessories Run, and type X:\Setup.exe.

3Click Next.

If necessary, select a language from the drop-down list.

View User’s Guide: Allows you to view the User’s Guide. If your computer doesn’t have Adobe Acrobat, click on this option and it will automatically install Adobe Acrobat Reader for you.

4Select Typical installation for a network printer. Click Next.

5The list of printers available on the network appears. Select the printer you want to install from the list and then click Next.

If you do not see your printer on the list, click Update to refresh the list, or select Add TCP/IP Port to add your printer to the network. To add the printer to the network, enter the port name and the IP address for the printer.

To find a shared network printer (UNC Path), select Shared Printer [UNC] and enter the shared name manually or find a shared printer by clicking the Browse button.

6After the installation is finished, a window appears asking you to print a test page and to register yourself as a user of Samsung Printers in order to receive information from Samsung. If you so desire, select the corresponding checkbox(es) and click Finish.

Otherwise, just click Finish.

NOTE: After setup is complete, if your printer driver doesn’t work properly, reinstall the printer driver. See “Reinstalling Printer Software” on page 10.

8

Installing Printer Software in Windows

Image 77
