Removal Of Car Seat Installed With LATCH:

1Loosen lower anchor belt by depressing belt adjuster slide button and pulling out lower anchor belt.

-Pressing down in center of car seat to reduce tension on lower anchor belt will make it easier to loosen lower anchor belt.

2Remove hook-on connectors from vehicle anchors.

-Press and hold the connector retainer spring 1 .

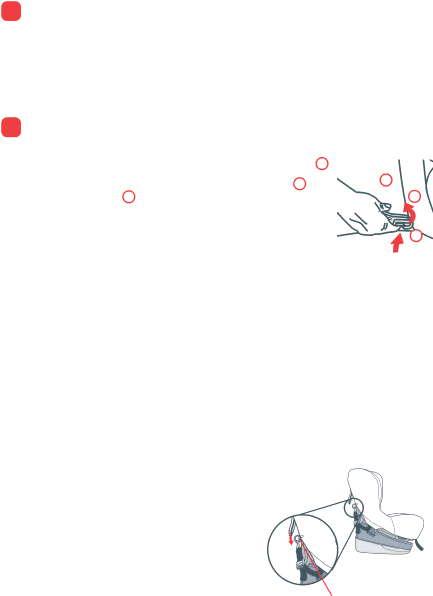

-Push connector in, then rotate connector 2 , and pull out 3 to unhook from the vehicle anchor (fig. j). If the connector can’t be rotated, push in and lift the connector to unhook from the vehicle anchor.

-Repeat to remove hook-on connector on opposite side.

3 2

1

(fig. j)

Storage Of Lower Anchor Belt And Connectors:

When not using the LATCH System, store the lower anchor belt and hook-on connectors by snapping the connectors onto LATCH connector storage rings located on the

back side of the seat pad (fig. k). Pull on free end of lower anchor belt to tighten.

NOTE: To prevent damage to the seat pad, care should be taken when removing or securing connectors. Excessive force could damage or tear seat pad.

(fig. k)

LATCH

Connector

Storage Ring
