CONNECTING TO THE WATER AND

2 DRAINAGE SYSTEM

CONNECTING TO

THE WATER SYSTEM

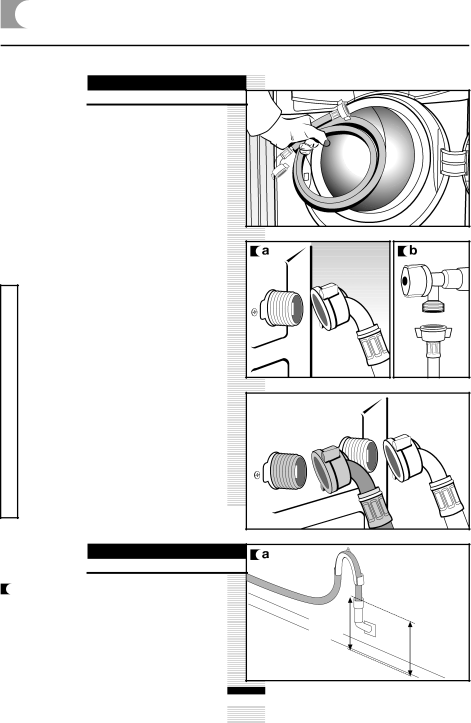

The water inlet tube is located inside the drum:

a Connect the elbow end of the tube to the threaded intake of the electro valve located at the back of the machine.

b

Important!

Connect the other end of the tube to the water intake. Once you have completed this operation, tighten the connecting bolt firmly.

The elbow part of the drain tube must be firmly connected to the outlet, so it does not fall off, in order to avoid the risk of flooding.

If your washing machine has an inlet for hot water, connect the red threaded tube to the hot water faucet, and to the electro valve with a red filter.

The washing machine must be connected to the water inlet system using the new inlet tubes provided with the machine. The previously used water inlet tubes must not be used.

For the washing machine to function properly, the water pressure should be 0.05-1MPa (0.5-10 kg/cm2 / 1.10-22.05 psi).

CONNECTING TO
THE DRAINAGE SYSTEM
a It is recommended to have a fixed drain
outlet, 50-70cm/19.69-27.56in from the
floor.	max.
The supplied elbow should be used to	70 cm.
prevent the drain tube from being too	27,56”
	min.
tight, bent or pinched.	50 cm.
	19,69”
