Panasonic CU-5E36QBU Technical Data, Operation Characteristics, One Indoor Unit Operation

Page 37

17. Technical Data

17.1 Operation Characteristics

17.1.1One Indoor Unit Operation

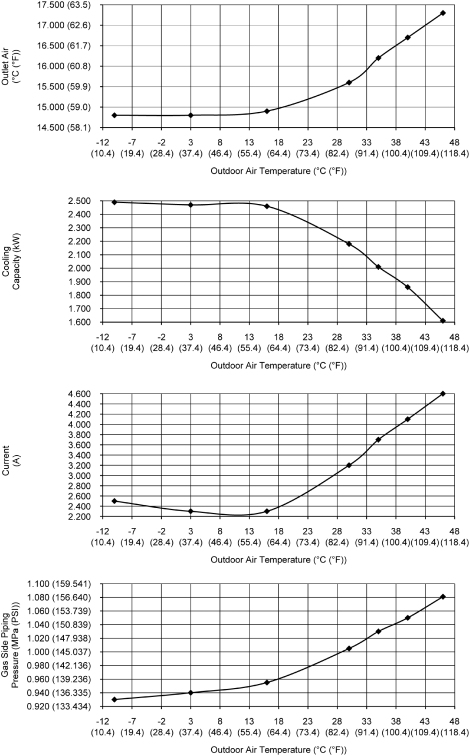

∙Cooling Characteristic

[Condition] Room temperature: 80.06°F (26.7°C) (DBT), 66.92°F (19.4°C) (WBT) Operation condition: High fan speed

Piping Length: 7.5m (24.6 ft)

230V 60Hz

A) Indoor unit capacity: Cooling (2.0: CS-ME7QKUA), service mode frequency = 20 Hz

37
