Teledyne 6750 operating instructions To Reassemble

Page 63

Total Organic Carbon Analyzer	Maintenance

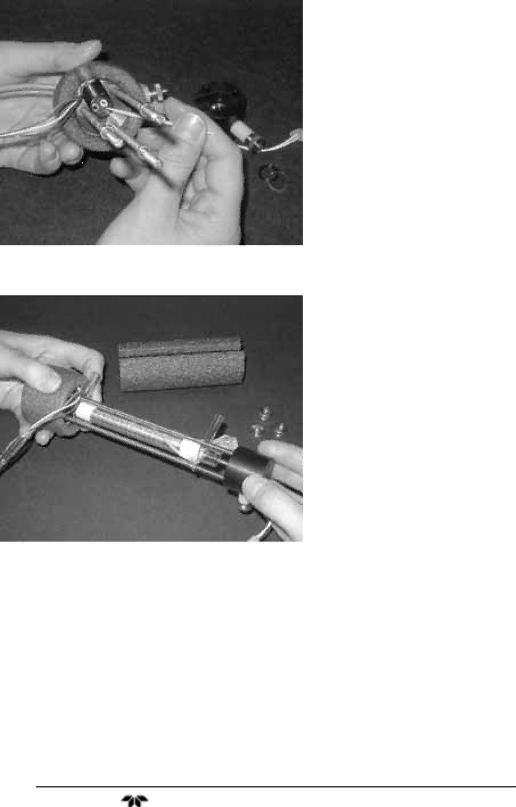

• *Remove ‘O’-Ring and Sapphire window taking care to avoid scratching Sapphire window.

*Recommend using toothpick.

• Clean sapphire windows with a soft, lintless tissue (use DI water, if necessary).

To Reassemble

• Install IR Cell.

• Install Source Assembly end piece.

Note: Large outlet port goes into

Detector Assembly (left)

Teledyne Analytical Instruments

51
