Woods Equipment BB60X, BB48X, BB72X manual BB84X Walterscheid Slip Clutch Driveline Assembly

Page 54

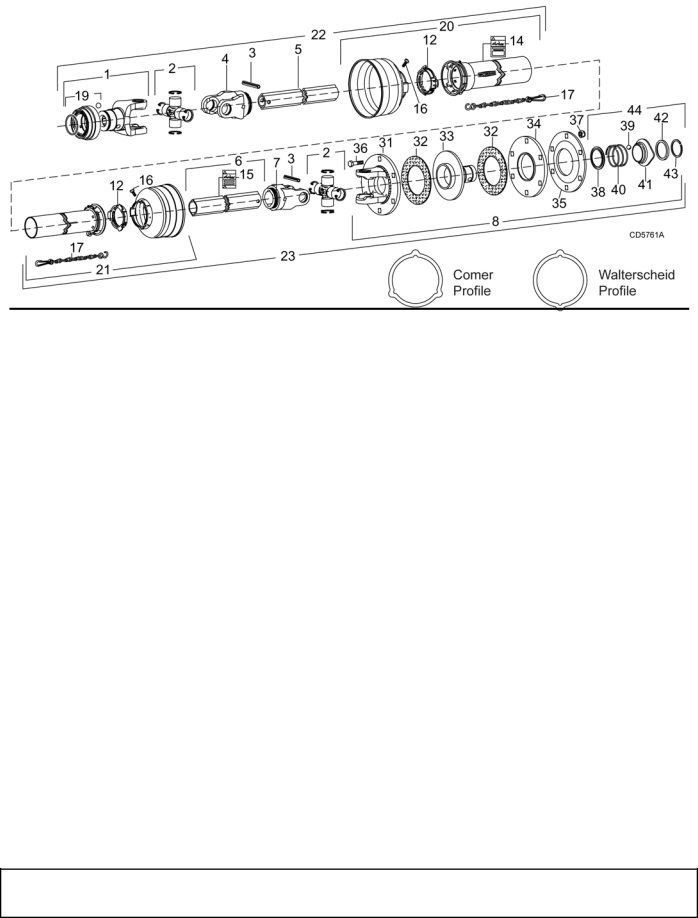

BB84X WALTERSCHEID SLIP CLUTCH DRIVELINE ASSEMBLY

REF

PART

QTY

DESCRIPTION

1

40574

1

Yoke 1-3/8 - 6 spline

2

110

2

Cross & bearing kit

3

40764

2

Spring pin 10 x 80

4

40575

1

Inboard yoke

5

40587

1

Inner profile

6

40588

1

Outer profile

7

40576

1

Inboard yoke

8

57412

1

Friction slip clutch

12

40766

2

Bearing ring SC25

14

18864

1

Danger decal, rotating driveline

15

33347

1

Danger decal, shield missing

16

40778

2

Screw, included in items 9 & 13

17

40777

2

Anti-rotation chain

19

40589

1

Slide collar kit

20

40590

1

Outer guard half

21

40591

1

Inner guard half

REF

PART

QTY

DESCRIPTION

22

57410

1

Shaft assembly, male







(complete with guard)

23

NSS

1

Shaft assembly, female







(complete with guard)

31

57438

1

Flange yoke

32

57432

2

Friction disc (set of 2)

33

57436

1

Hub, 1-3/8" spline

34

57434

1

Thrust plate

35

57439

1

Belleville spring plate

36

57259

6

10 mm x 1.5P x 55 mm Cap screw

37

57260

6

10 mm x 1.5P Hex lock nut

38——— 1 Back-up ring

39——— 3 Ball

40——— 1 Compression spring

41——— 1 Lock collar

42——— 1 Back-up ring

43——— 1 Snap ring

44 57437

1 QD Flange service kit (items 38-43)

NSS

Not Serviced Separately

54Parts

(Rev. 6/15/2007) MAN0632 (5/15/2007)
