Multiquip LT12DAB operation manual Turning On the Lamps, AUXILIARY Output Receptacles

Page 27

operation

Turning On the Lamps

The main circuit breaker (30 amps), and 4 lamp circuit breakers (15 amps each) are located on the upper control panel (Figure17).

1.Place the main circuit breaker (Figure 17) on the control panel to the ON position.

30A

15A

MAIN

AUX

BREAKER

BREAKER



AUXILIARY

MAIN

RECEPTACLE



CIRCUIT

CIRCUIT



BREAKER

BREAKER



LAMP

CIRCUIT

BREAKERS LIGHT CONTROL/BREAKER

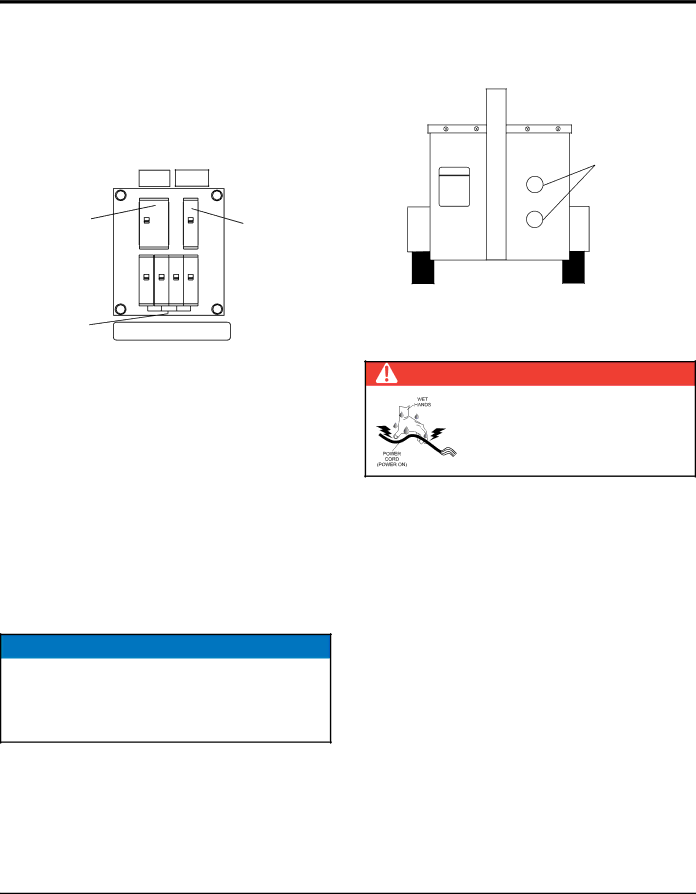

Figure 17. Control Panel Circuit Breakers

2.Set lamp circuit breaker #1 on the control panel to the ON position.

3.Wait a few minutes for the ballast to activate. Observe that lamp #1 is ON.

4.Repeat steps 2 and 3 for lamps 2 through 4.

5.If all the lamp circuit breakers are in the ON position (up), then all of the lights should be on.

6.If any of the lamps are not on, refer to the troubleshooting section of this manual.

7.Close all cabinet doors.

NOTICE

NEVER operate the light tower with the engine compartment doors open. Operation with the doors open may cause insufficient cooling to the unit, and damage may result.

aUXILIARY OUTPUT RECEPTACLES

The light tower is equipped with auxiliary output receptacle wiring ready to install auxiliary receptacles (Figure 18).



AUXILIARY

15 AMPS

OUTPUT





RECEPTACLES

DOCUMENTATION



BOX



FRONT



VIEW



Figure 18. Auxiliary Output Receptacles

DANGER

NEVER grab or touch a live power cord with wet hands. The possibility exists of electrical shock, electrocution, and even death!

LT12Dab LIGHT TOWER • operation manual — rev. #0 (06/03/11) — page 27
