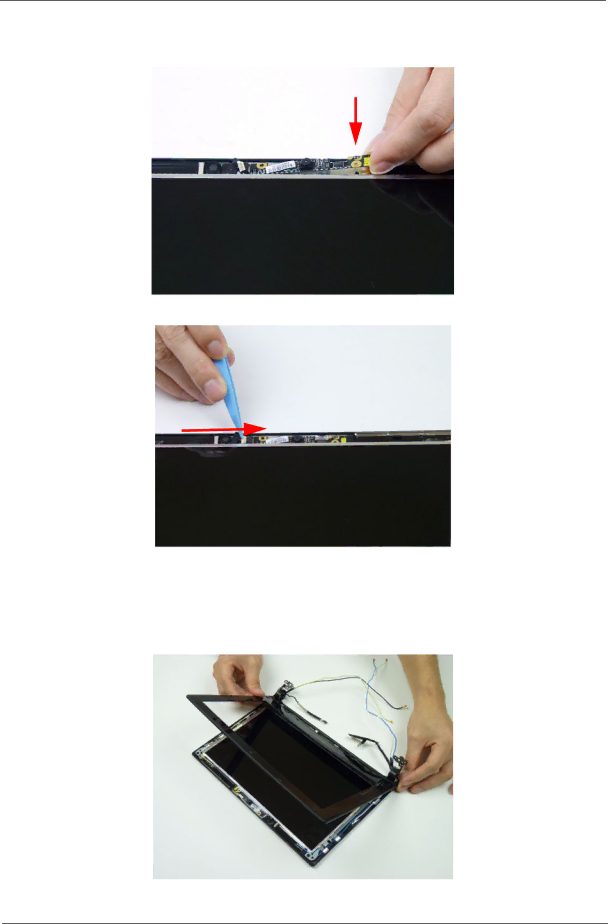

Replacing the CCD Module
1.Adhere the CCD to the LCD module cover.
2.Connect the CCD cable to the CCD module connector.
Replacing the LCD Bezel
1.Locate the bezel hinges first and press down until there are no gaps between the bezel and the LCD module cover hinge wells.
NOTE: Ensure that the LCD cables pass through the hinge wells and are not trapped by the bezel.
