Replacing the Thermal Module
IMPORTANT:Apply a suitable thermal grease and ensure all heat pads are in place before replacing the thermal module.
The following thermal grease types are approved for use:
•Silmore GP50
•Honeywell
•ShinEtsu 7762
The following thermal pads are approved for use:
•Eapus
1.Remove all traces of thermal grease from the CPU using a
2.Apply a small amount of thermal grease to the centre of the

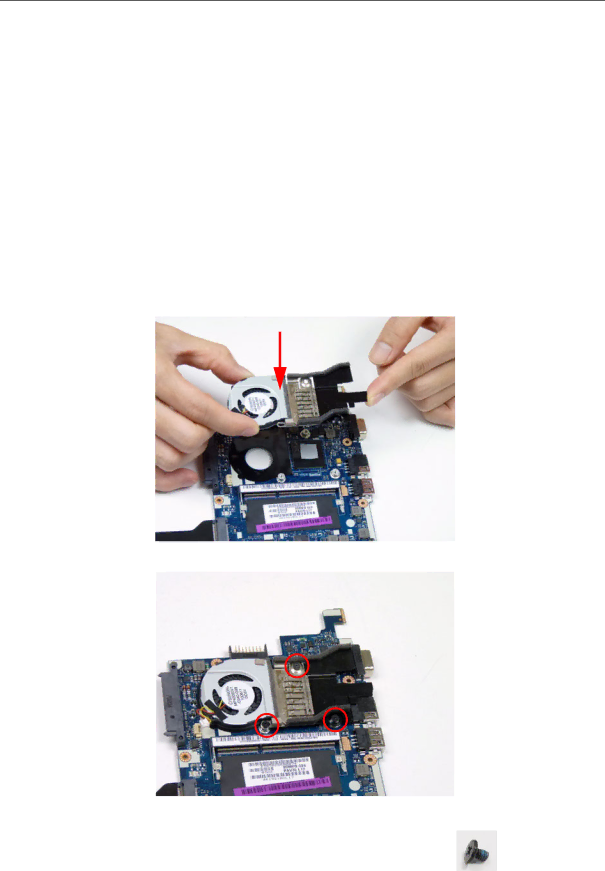

3.Align the screw holes on the thermal module and mainboard and lower the module into place. Keep the module as level as possible to spread the thermal grease evenly.
4.Secure the three (3) screws in reverse sequential order from 3 to 1.
3
2 1
| Step |
| Size | Quantity | Screw Type |
|
|
|
|
|
|
|
|
| Thermal Module | M2*3 |
| 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
102 | Chapter 3 |
