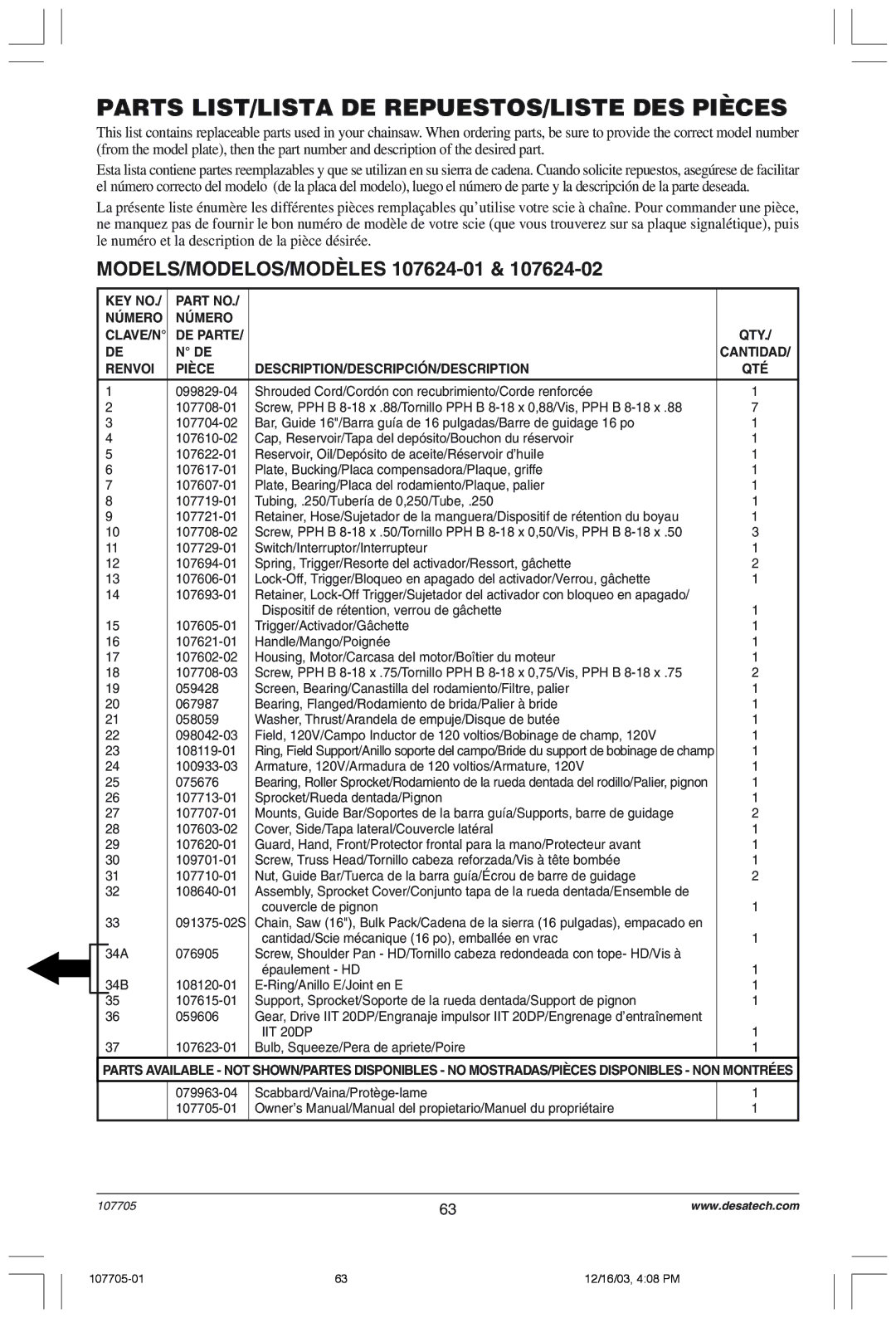

PARTS LIST/LISTA DE REPUESTOS/LISTE DES PIÈCES

This list contains replaceable parts used in your chainsaw. When ordering parts, be sure to provide the correct model number (from the model plate), then the part number and description of the desired part.

Esta lista contiene partes reemplazables y que se utilizan en su sierra de cadena. Cuando solicite repuestos, asegœrese de facilitar el nœmero correcto del modelo (de la placa del modelo), luego el nœmero de parte y la descripci—n de la parte deseada.

La prŽsente liste Žnum•re les diffŽrentes pi•ces rempla•ables quÕutilise votre scie ˆ cha”ne. Pour commander une pi•ce, ne manquez pas de fournir le bon numŽro de mod•le de votre scie (que vous trouverez sur sa plaque signalŽtique), puis le numŽro et la description de la pi•ce dŽsirŽe.

MODELS/MODELOS/MODéLES 107624-01 & 107624-02



KEY NO./

PART NO./







NòMERO

NòMERO







CLAVE/N¡

DE PARTE/



QTY./



DE

N¡ DE



CANTIDAD/



RENVOI

PIéCE

DESCRIPTION/DESCRIPCIîN/DESCRIPTION

QTƒ



1

099829-04

Shrouded Cord/Cord—n con recubrimiento/Corde renforcŽe

1



2

107708-01

Screw, PPH B 8-18 x .88/Tornillo PPH B 8-18 x 0,88/Vis, PPH B 8-18 x .88

7



3

107704-02

Bar, Guide 16"/Barra gu’a de 16 pulgadas/Barre de guidage 16 po

1



4

107610-02

Cap, Reservoir/Tapa del dep—sito/Bouchon du rŽservoir

1



5

107622-01

Reservoir, Oil/Dep—sito de aceite/RŽservoir dÕhuile

1



6

107617-01

Plate, Bucking/Placa compensadora/Plaque, griffe

1



7

107607-01

Plate, Bearing/Placa del rodamiento/Plaque, palier

1



8

107719-01

Tubing, .250/Tuber’a de 0,250/Tube, .250

1



9

107721-01

Retainer, Hose/Sujetador de la manguera/Dispositif de rŽtention du boyau

1



10

107708-02

Screw, PPH B 8-18 x .50/Tornillo PPH B 8-18 x 0,50/Vis, PPH B 8-18 x .50

3



11

107729-01

Switch/Interruptor/Interrupteur

1



12

107694-01

Spring, Trigger/Resorte del activador/Ressort, g‰chette

2



13

107606-01

Lock-Off, Trigger/Bloqueo en apagado del activador/Verrou, g‰chette

1



14

107693-01

Retainer, Lock-Off Trigger/Sujetador del activador con bloqueo en apagado/











Dispositif de rŽtention, verrou de g‰chette

1



15

107605-01

Trigger/Activador/G‰chette

1



16

107621-01

Handle/Mango/PoignŽe

1



17

107602-02

Housing, Motor/Carcasa del motor/Bo”tier du moteur

1



18

107708-03

Screw, PPH B 8-18 x .75/Tornillo PPH B 8-18 x 0,75/Vis, PPH B 8-18 x .75

2



19

059428

Screen, Bearing/Canastilla del rodamiento/Filtre, palier

1



20

067987

Bearing, Flanged/Rodamiento de brida/Palier ˆ bride

1



21

058059

Washer, Thrust/Arandela de empuje/Disque de butŽe

1



22

098042-03

Field, 120V/Campo Inductor de 120 voltios/Bobinage de champ, 120V

1



23

108119-01

Ring, Field Support/Anillo soporte del campo/Bride du support de bobinage de champ

1



24

100933-03

Armature, 120V/Armadura de 120 voltios/Armature, 120V

1



25

075676

Bearing, Roller Sprocket/Rodamiento de la rueda dentada del rodillo/Palier, pignon

1



26

107713-01

Sprocket/Rueda dentada/Pignon

1



27

107707-01

Mounts, Guide Bar/Soportes de la barra gu’a/Supports, barre de guidage

2



28

107603-02

Cover, Side/Tapa lateral/Couvercle latŽral

1



29

107620-01

Guard, Hand, Front/Protector frontal para la mano/Protecteur avant

1



30

109701-01

Screw, Truss Head/Tornillo cabeza reforzada/Vis ˆ t•te bombŽe

1



31

107710-01

Nut, Guide Bar/Tuerca de la barra gu’a/ƒcrou de barre de guidage

2



32

108640-01

Assembly, Sprocket Cover/Conjunto tapa de la rueda dentada/Ensemble de











couvercle de pignon

1



33

091375-02S

Chain, Saw (16"), Bulk Pack/Cadena de la sierra (16 pulgadas), empacado en











cantidad/Scie mŽcanique (16 po), emballŽe en vrac

1



34A

076905

Screw, Shoulder Pan - HD/Tornillo cabeza redondeada con tope- HD/Vis ˆ











Žpaulement - HD

1



34B

108120-01

E-Ring/Anillo E/Joint en E

1







107615-01

Support, Sprocket/Soporte de la rueda dentada/Support de pignon

1



35



36

059606

Gear, Drive IIT 20DP/Engranaje impulsor IIT 20DP/Engrenage dÕentra”nement











IIT 20DP

1



37

107623-01

Bulb, Squeeze/Pera de apriete/Poire

1

PARTS AVAILABLE - NOT SHOWN/PARTES DISPONIBLES - NO MOSTRADAS/PIéCES DISPONIBLES - NON MONTRƒES

079963-04

Scabbard/Vaina/Prot•ge-lame

107705-01

OwnerÕs Manual/Manual del propietario/Manuel du propriŽtaire





1

1

107705

63

www.desatech.com

107705-01

63

12/16/03, 4:08 PM

Page 63
