Removal and Replacement Procedures

7.Turn the computer display-side up with the front toward you.

8.Open the computer as far as possible.

9.Lift and hold the rear edge of the keyboard until the LED board cable connector is accessible.

Releasing the Keyboard Assembly Frame

Maintenance and Service Guide

5–25

Page 110 Page 112

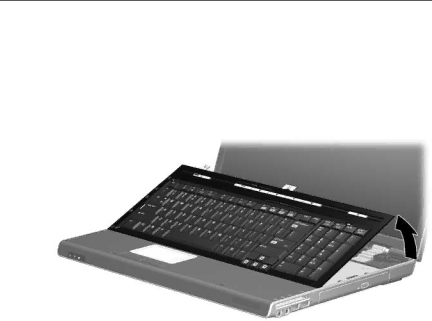

Page 111
