Removal and Replacement Procedures

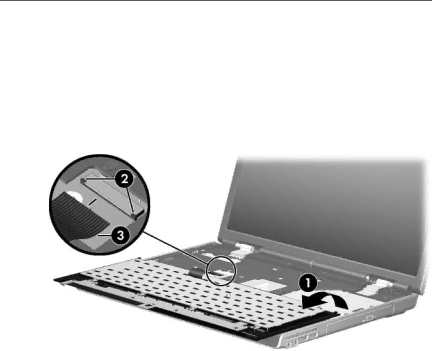

11.Swing the keyboard assembly frame 1 forward until the assembly rests on the palm rest.
12.Release the ZIF connector to which the keyboard cable 2 is attached and disconnect the keyboard cable 3.
13.Remove the keyboard assembly frame.
Removing the Keyboard Assembly Frame
Reverse the above procedure to install the keyboard assembly frame.
