Removal and Replacement Procedures

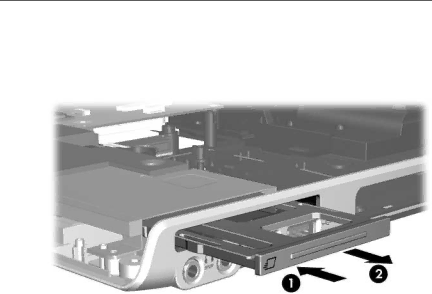

2.Press in on the ExpressCard slot bezel 1 to release it.

3.Remove the ExpressCard slot bezel 2.

Removing the ExpressCard Slot Bezel

Maintenance and Service Guide

5–51
