Error List

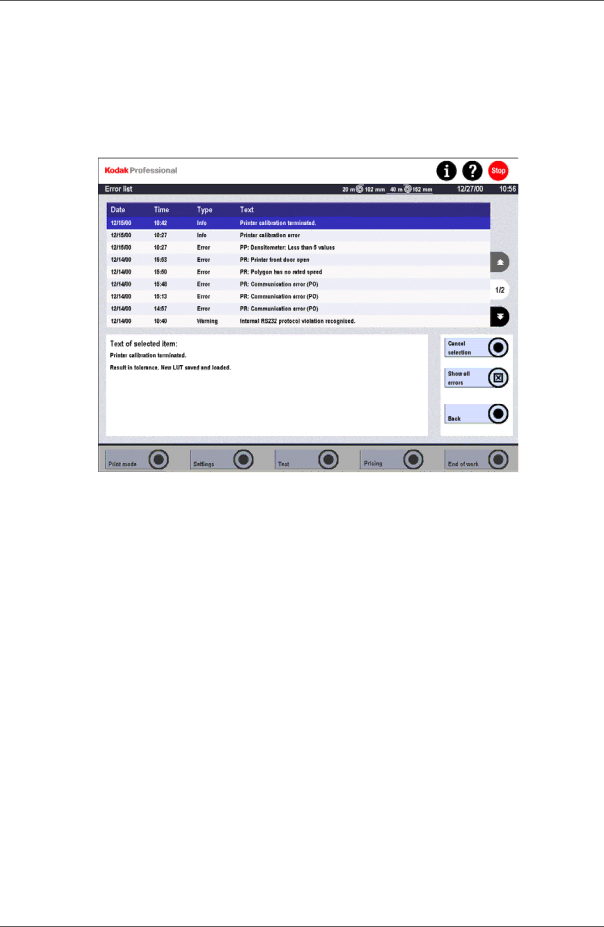

All error messages shown in the status line are saved. Touch i, then Error list to view the error messages.

The list shows the error messages with the date and time of occurrence.

•Disable Display all errors if the error list only shows the errors encountered since the last start or reset.

•If the complete error message is not displayed in the error list, touch the message to display the complete text below the error list.

•To delete the message from the list, mark the message and touch Remove selection.

•Touch Back to return to the Info screen.

The error list and error removal are described in Chapter 7, Correcting System Conditions.

KODAK PROFESSIONAL RP 30 Laser Printer

2-39
