Embedded DVR User Guide

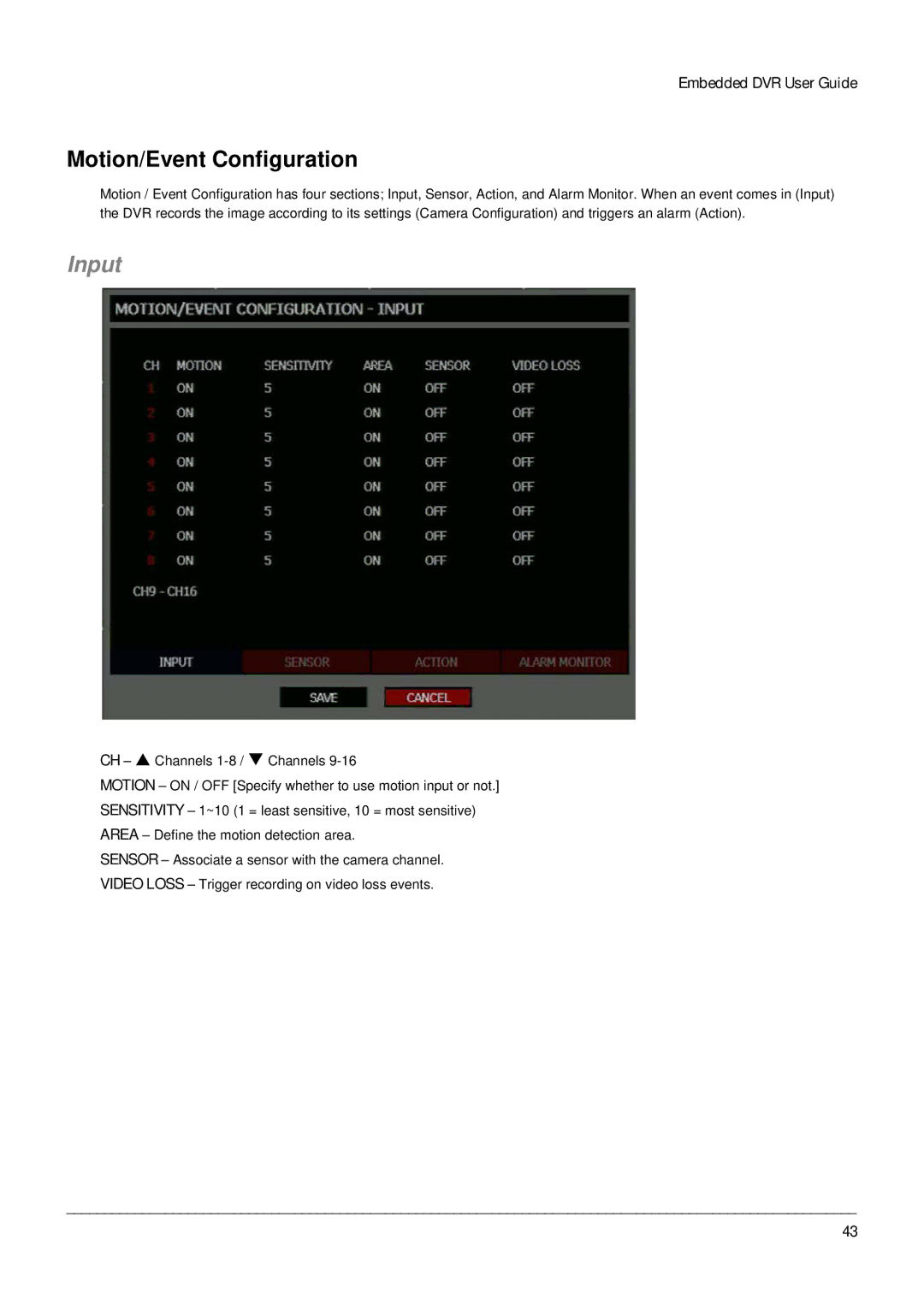

Motion/Event Configuration
Motion / Event Configuration has four sections; Input, Sensor, Action, and Alarm Monitor. When an event comes in (Input) the DVR records the image according to its settings (Camera Configuration) and triggers an alarm (Action).
Input
CH – Channels
MOTION – ON / OFF [Specify whether to use motion input or not.]
SENSITIVITY – 1~10 (1 = least sensitive, 10 = most sensitive)
AREA – Define the motion detection area.
SENSOR – Associate a sensor with the camera channel.
VIDEO LOSS – Trigger recording on video loss events.
________________________________________________________________________________________________________
43
