Archer C9 AC1900 Wireless Dual Band Gigabit Router
3.Select the protocol used for Trigger Port from the Trigger Protocol
4.Select the protocol used for Incoming Ports from the Incoming Protocol
5.Select Enabled in Status field.
6.Click the Save button to save the new rule.

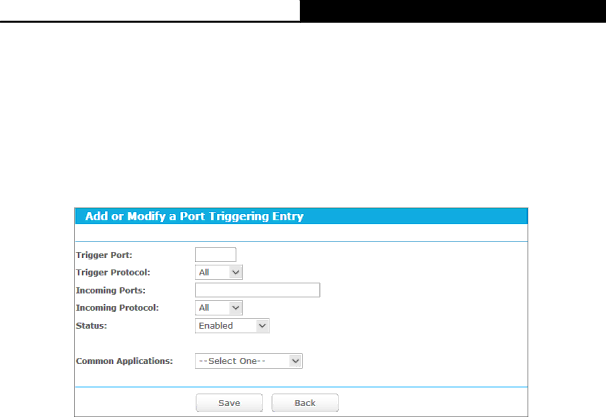

Figure 5-54 Add or Modify a Triggering Entry
Trigger Port - The port for outgoing traffic. An outgoing connection using this port will trigger this rule.
Trigger Protocol - The protocol used for Trigger Ports, either TCP, UDP, or All (all protocols supported by the router).
Incoming Port - The port or port range used by the remote system when it responds to the outgoing request. A response using one of these ports will be forwarded to the PC which triggered this rule. You can input at most 5 groups of ports (or port sections). Every group of ports must be separated with ",", for example, 2000-2038, 2046, 2050-2051, 2085, 3010-3030.
Incoming Protocol - The protocol used for Incoming Port, either TCP, UDP, or ALL (all protocols supported by the router).
Status - The status of this entry, Enabled means the Port Triggering entry is enabled.
Modify - To modify or delete an existing entry.
Common Applications - Some popular applications already listed in the drop-down list of Incoming Protocol.
To modify or delete an existing entry:
1.Find the desired entry in the table.
2.Click Modify or Delete as desired on the Modify column.
