Canon LV-7225, LV-5220, LV-7220 owner manual Lamp counter reset, Fan Factory default

Page 48

Setting

Fan

This function provides you the following alternatives in the cooling fans operation after turning off the projector. (p21)

L1 . . . . . . . .normal operation. Cooling the projector for 90 seconds after turning off the projector.

L2 . . . . . .slower operation than the normal (L1) , but takes longer to cool down the projector. Cooling the projector for 120 seconds after turning off the projector.

Lamp counter reset

This function is used to reset the lamp replace counter. When replacing the projection lamp, reset the lamp replace counter by using this function. See page 53 for operation.

Factory default

This function returns all setting values except for the user logo, PIN code lock, logo PIN code lock and the lamp counter to the factory default settings.

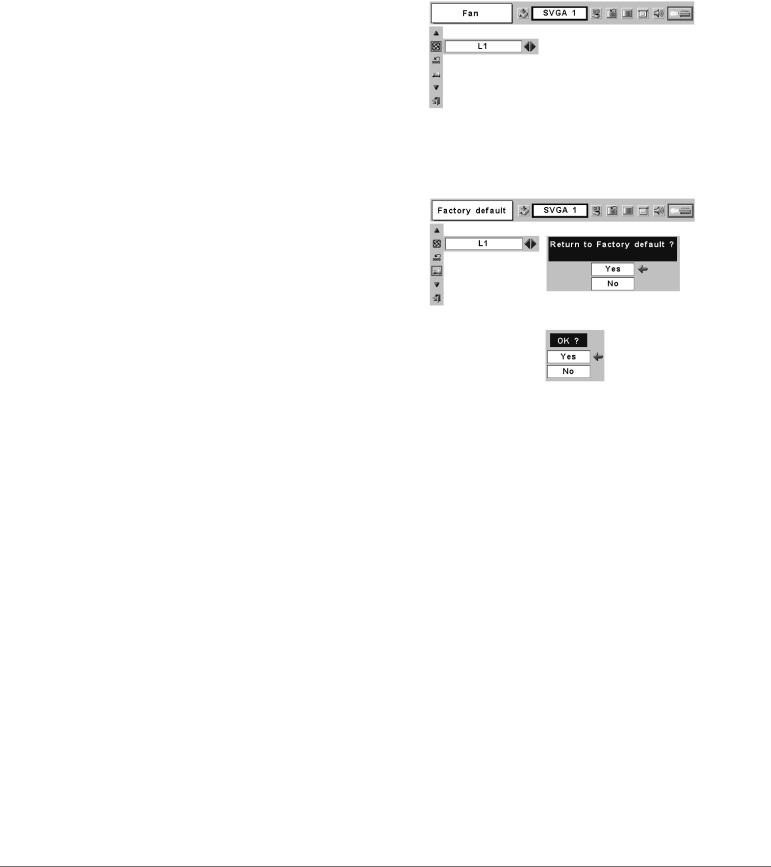

Fan

Factory default

Select Factory default and this box appears. Select [Yes] , and the next box appears.

Select [Yes] to activate it.

48
