Monarch 6030TM manual Supply Holder

Page 23

Chapter 3. Loading Supplies

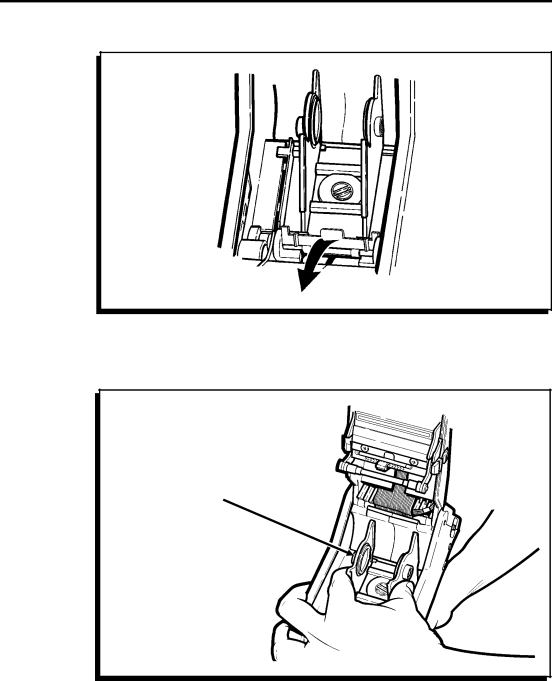

3.Pull back the supply lock tab.

4.Squeeze or pull apart the supply holder at its base to adjust it to the size of your supply roll. It clicks at 1.2", 1.5", and 2.0".

Supply

Holder

3-9

Image 23
