Intel II manual Removing a Hard Drive from the IDE Drive Bay, IDE Hard Drive

Page 28

7.Insert and tighten four screws (gold colored screws with washers are provided).

8.￿Install the IDE drive bay into the chassis.

OM07562

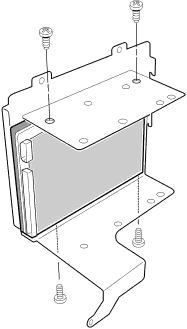

Figure 16. IDE Hard Drive

Removing a Hard Drive from the IDE Drive Bay

1.Observe the safety and ESD precautions at the beginning of this chapter. Also see the cabling considerations on page 27.

2.Remove the IDE drive bay from the chassis.

3.Remove the four screws holding the hard drive in the bay.

4.Slide the hard drive out of the bay.

5.￿Reinstall the hard drive bay.

28

Intel Astor II Server Chassis Subassembly Product Guide
