FULL ONE YEAR WARRANTY ON CRAFTSMAN SAND SAW

If within one year from the date of purchase, this Craftsman Band Saw fails due to a defect in materia!

or workmanship. Sears will repair it, free of charge.

WARRANTYSERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEARESTSEARS SERVICE

CENTER/DEPARTMENTTHROUGHOUTTHE UNITED STATES

THiS WARRANTY APPLIES ONLY WHILE THiS PRODUCT IS IN USE iN THE UNITED STATES

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

SEARS. ROEBUCK AND CO.. 698/731A, Sears Tower, Chicago, IL 60684

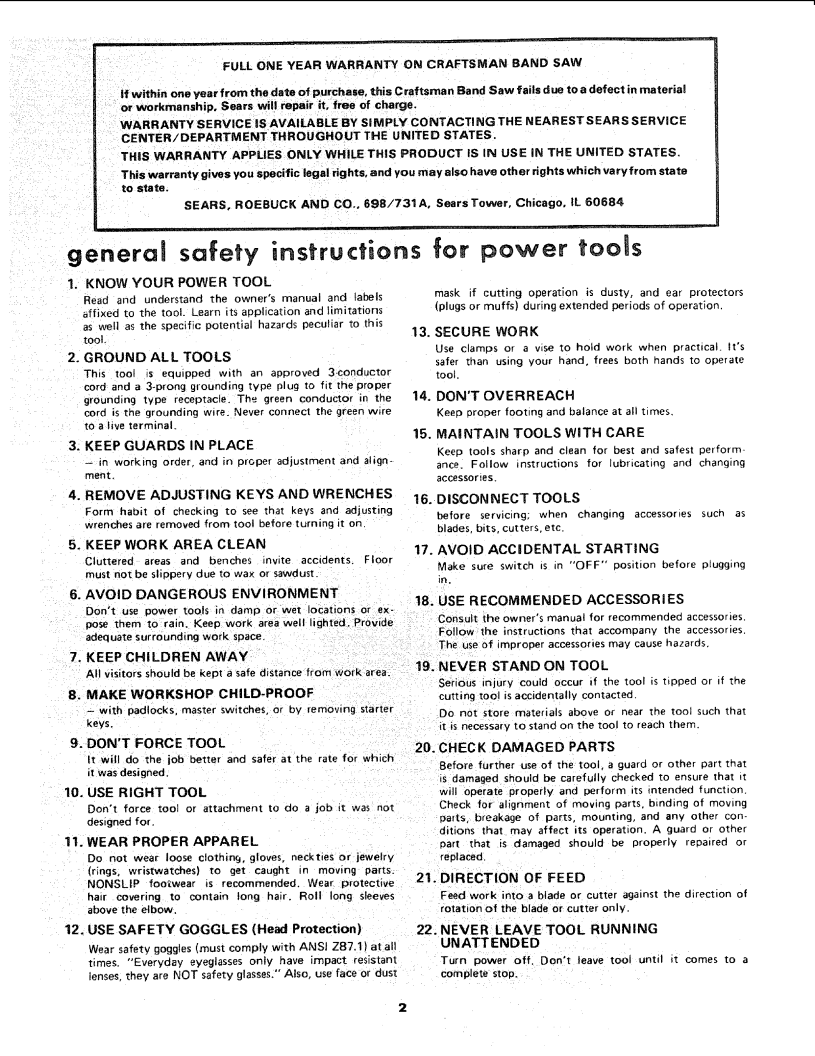

general safety instructions

1.KNOW YOUR POWER TOOL

Read and understand the owner's manua and labels

affixed

to

the

tool. Learn its

a pplication

ana limitations

as well

as

the

specific potential

hazards

peculiar to this

toot.











2. GROUND ALL TOOLS

This toot is equipped with an approved 3-conductor

cord and a 3-prong grounding type plug to fit the proper

grounding type receptacle. The green conductor in the cord is the grounding wire. Never connect the green w_re to a live terminal.

3.KEEP GUARDS IN PLACE

- in working oraer, and in proper adjustment and align- ment.

4.REMOVE ADJUSTING KEYS AND WRENCHES

Form habit of checking to see that keys and adjusting wrenches are removed from toot before turning it on

5. KEEP WORK AREA CLEAN

Cluttered areas and benches mvite accidents. Floor must not be slippery due to wax or sawdust.

0.AVOID DANGEROUS ENVIRONMENT

Don't use power tools in damp or wet locations or ex-

pose mere to rain. Keep work area well lighted, Provide adequate surrounding work space,

7. KEEP CHILDREN AWAY

All visitors should be kept a safe distance from work area_

8, MAKE WORKSHOP C MILD-PROOF

-- with padlocks, master switches or by removing starter keys,

9.DON'T FORCE TOOL

It will do the job better and safer at the rate for which it was designed.

10. USE RIGHT TOOL

Don't force tool or attachment to do a job it was not designed for,

11.WEAR PROPER APPAREL

Do not wear loose clothing, gloves, neckties or jewelry

(rings, wristwatches) To get caught iF moving parts.

NONSLIP footwear is recommended. Wear protective hair covering to contain long hair. Roll long sleeves

above the elbow.

12. USE SAFETY GOGGLES (Head Protection)

Wear safety goggles (must comply with ANSI Z87.1) at all times. "Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses." Also. use face or dust

for power tools

mask if cutting operation is dusty, and ear protectors (plugs or muffs) during extended periods of operation.

13. SECURE WORK

Use clamps or a v=se to hold work when practical. It's safer than using your hand, frees both hands to operate tool.

14.DON'T OVERREACH

Keeo orooer footing and balance at all times.

15.MAINTAIN TOOLS WiTH CARE

Keep tools sharp and clean for best and safest oerform-

once. Follow mstructions for luOncatlng and changmg

accessories.

16. DISCONNECT TOOLS

before servicing; when changing accessories sucn as blades, bits, cutters, etc.

17. AVOID ACCIDENTAL STARTING

Make sure switch is an "OFF" 13osltion before p[uggmg

In.

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended accessories.

Follow the instructions that accompany the accessories. The use of improper accessories may cause hazards,

19.NEVER STAND ON TOOL

Serious injury could occur if the tool is t_pped or if the

cutting tool is accidentally contacted.

Do not store materials above or near me tool such that it _snecessary to stand on the tool to reach them.

20. CHECK DAMAGED PARTS

Before further use of the tool, a guaro or other part that =s damaged should be carefully checked to ensure that _t will operate properly and perform its mtended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mountmg, and any other con-

ditions that may affect its operation A guard or other

cart that s damaged should be properly reoaired or replaced.

21.DIRECTION OF FEED

Feed work into a blade or cutter against the direction o! rotation of the blade or cutter only.

22. NEVER LEAVETOOL RUNNING

UNATTENDED

Turn power off. Don't leave tool until it comes to a complete stop.

2
