Screw type and | Figure | Usage | |
part number | |||
|
| ||
Locating ring for |
| Supports the M6 metal screws | |
Rittal rack |
| for securing system components | |
34.94814.001 |
| to the Rittal rack |

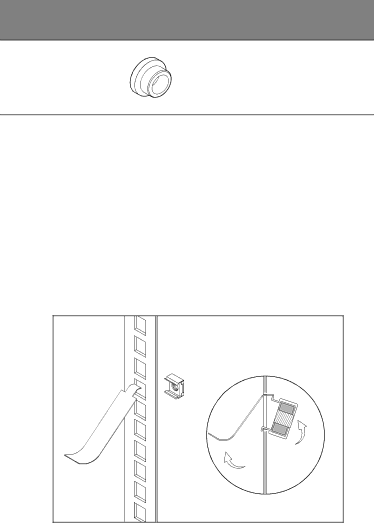

Installing cage nuts
Cage nuts are use to secure systems and other components to the vertical rails in the rack.
To install cage nuts:
1Insert the lower lip of the cage nut over the bottom of the opening at the back of a rail.
2Insert the small end of the
3Push in the cage nut while rotating the tool up and pulling the tool back toward you until the top lip of the cage nut snaps into position.
4Repeat this process to install the other cage nuts in their appropriate locations.
