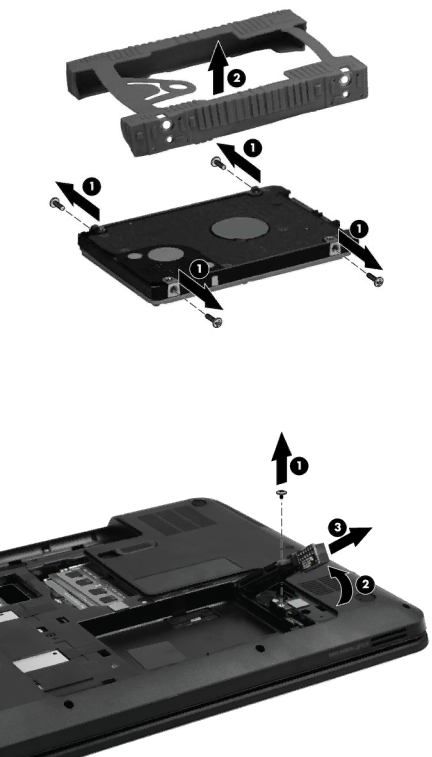

3.To replace the hard drive bracket, remove the four Phillips 3.0×3.0 screws (1) that secure the hard drive bracket to the hard drive.

4.Pull the bracket (2) straight up to remove it from the hard drive.

5.To replace the hard drive adapter, remove the Phillips pan head 2.0 x 2.0 screw (1), and then disconnect the adapter from the system board at the outside edge (2).

6.Then lift the adapter out at a 45-degree angle (3).

Reverse this procedure to install the hard drive.
