Changing the Edge Quality of Still Images, Sharpness | Ricoh R 3

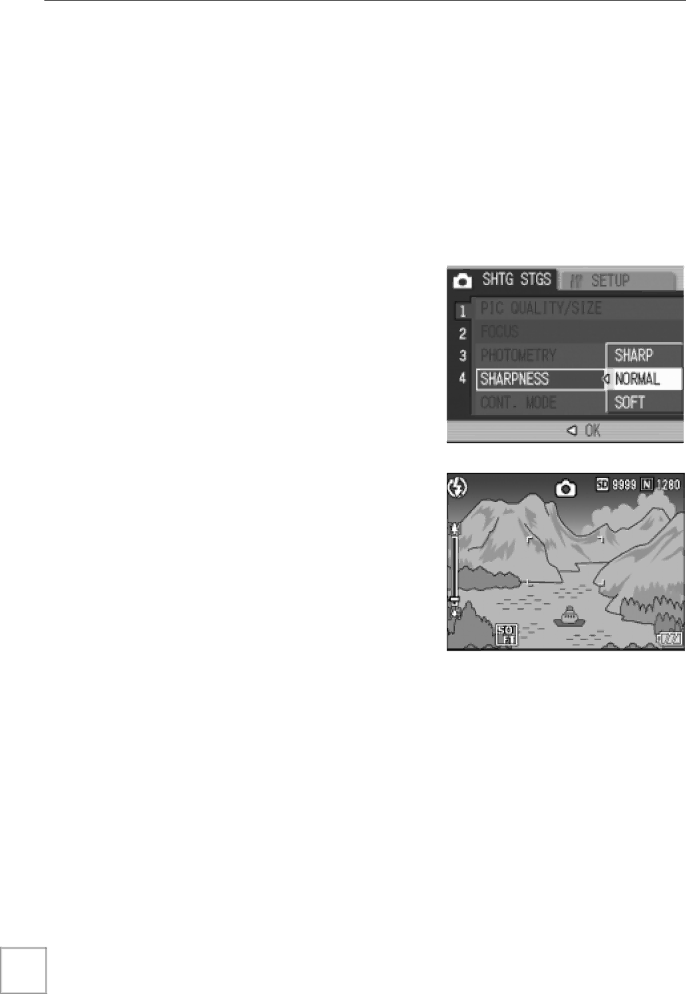

Changing the Edge Quality of Still Images

(SHARPNESS)

You can change the definition of your still images to either sharp or soft.

1. Switch the Mode Selector to 5.

2. Press the M/O button.

The Shooting Setting menu appears.

3. Press the " button to select [SHARPNESS] and press the $ button.

4. Press the !" buttons to select the desired setting.

5. Press the M/O or # button.

Sharpness settings are complete.

6. If you pressed the # button in step 5, press also the M/O button.

The shooting setting menu disappears and the LCD monitor displays the set values. This setting will be used for shooting until you change it.

70

Image 72

Ricoh R 3 manual Changing the Edge Quality of Still Images, Sharpness
