Intel SBC-780 manual 25 PS2 Keyboard/Mouse Connector CN17

Page 33

	F u l l - Size CPU Card		S B C - 7 8 0

	CN15		* optional function

	Pin	Signal

	1	N.C
	2	+5V

	3	+12V

	4	-12V

	5	GND

	6	GND

	7	GND

	8	GND

	9	-5V

	10	+5V

	11	+5V

	12	+5V

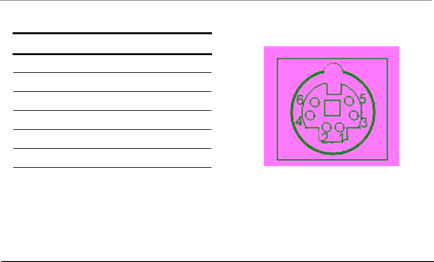

2.25 PS2 Keyboard/Mouse Connector (CN17)

Pin Signal

1KB_DATA

2MS-DATA

3GND

4+5VSB

5KB_CLK

6MS_CLK

Chapter 2 Quick Installation Guide

2 - 20
