IOGear GCS138 installation manual Front View, Port LEDs, Port Selection Switches

Page 12

Introduction

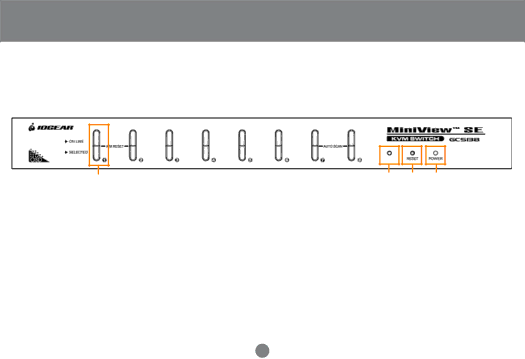

Front View

1, 2

4

3

5

1. Port LEDs

On Line: Lights BLUE to indicate that the PC attached to the corresponding port is up and running. If the LED is flashing,

it indicates that the Port is being used for Cascading to another MiniViewTM ULTRA switch. Selected: Lights Green to indicate the current selected port. The LED is steady under normal conditions, but flashes when its port is accessed under Auto Scan mode.

2. Port Selection Switches

Press a switch to access the PC attached to the corresponding port. Pressing Buttons 1 and 2 simultaneously for 3 seconds performs a Keyboard and Mouse reset; pressing Buttons 7 and 8 simultaneously starts Auto Scan Mode.

8

Image 12
