1-5 Install Card & Ribbon

The HiTi card printer package does not include cards and ribbons. You can contact your local HiTi distributor or refer to Appendix E for consumer ordering information.

zThe Card Installation

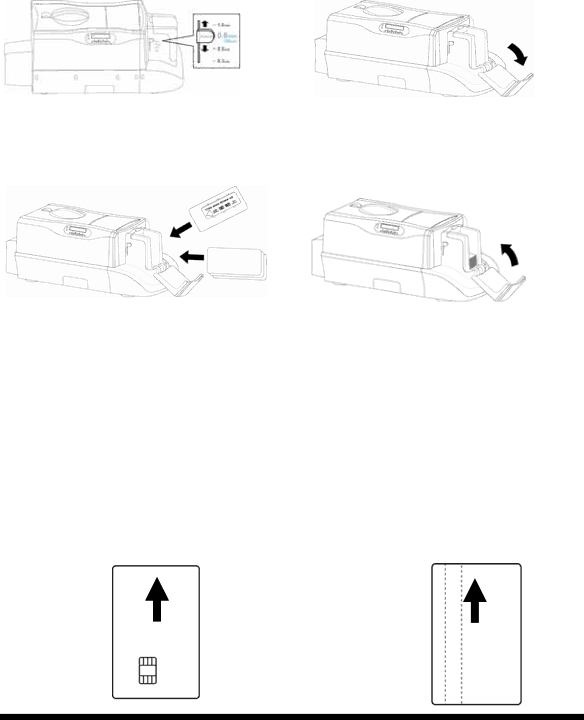

1.Please move and slide the selector for 2. Open the door of the Card Input thickness to the correct thickness position Hopper.

which matches the thickness of the card to be printed.

1.Insert a blank card, place the weight on the top and close the door of the Card Input Hopper. Please refer to the instruction on the weight to position the weight properly, as illustrated.

Notes:

1.The card should be inserted horizontally into the Card Input Hopper. The contact smart card and magnetic stripe card need to be inserted in a specific way, as illustrated.

2.If the cards in the Card Input Hopper can not be picked up smoothly by the printer, please make sure the cards are not sticking to each other by loosening or shuffling the cards with your finger.

*The contact smart card installation:

*The magnetic stripe card

The smart card chip faces up. Then

installation:

please insert it horizontally into the Card

The magnetic stripe faces down.

Input Hopper as the instructions indicate

Then please insert it horizontally into

on the Card Input Hopper.

the Card Input Hopper as the



instructions indicate on the Card



Input Hopper.
