Hi-Touch Imaging Technologies CS-320, CS-310 manual 1Clean Cleaning Roller

Page 32

4-1Clean Cleaning Roller

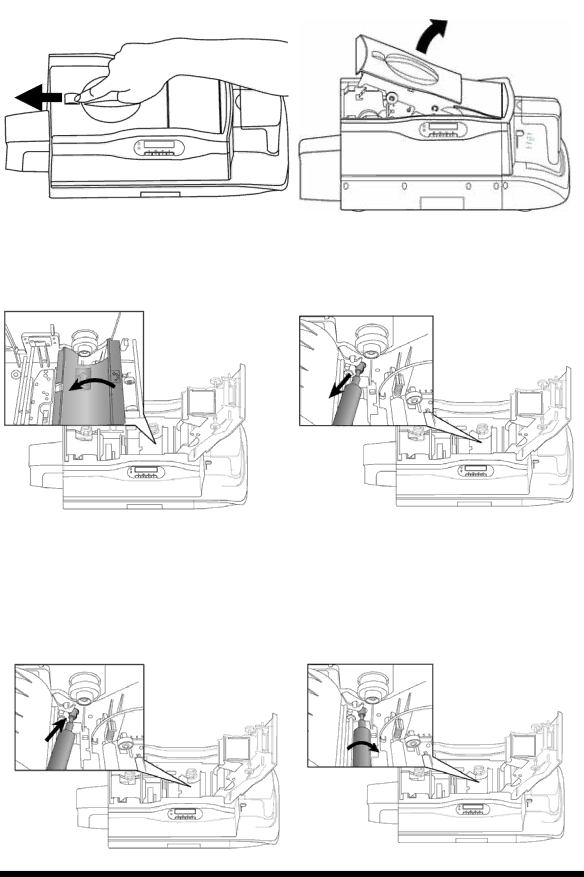

1.Switch the card printer off.

2.Slide the ID button and lift the ribbon door up.

3.Open the cover of the cleaning module and take the cleaning roller off, as illustrated.

4.Roll the cleaning roller against the adhesive side of the cleaning card or against the adhesive tape to remove the dust from the cleaning roller.

5.Please insert the cleaning roller spool into the spool receivers. Turn the cleaning roller after installation; if it turns smoothly, the installation of the cleaning roller is correct. If it does not turn smoothly, please re-install the cleaning roller.

32www.hi-ti.com
