[Magnetic Encoding]

D

A

B

CE

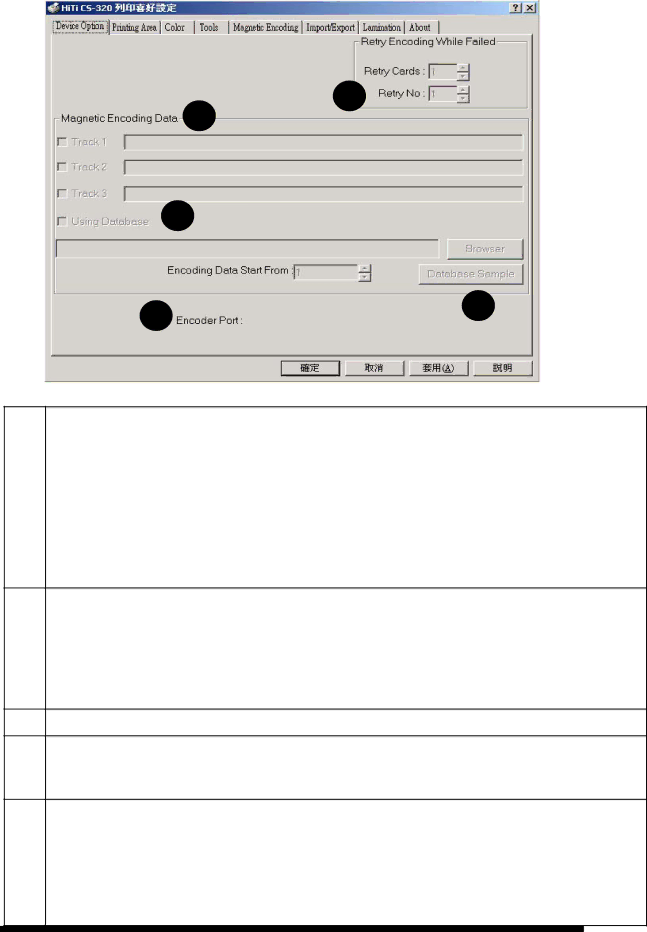

AMagnetic Encoding Data: Input Magnetic Data directly. When you are not using the database, you can manually enter data for the encoding of the magnetic stripe. There are three tracks within the magnetic stripe. The first track includes alphanumeric characters and other simple symbols. The second and the third tracks accept numeric characters only.

When you mark □Track 1, □Track 2, □Track 3 for data encoding, the function of

□Using Database will be disabled. When you mark □Using Database for data encoding, □Track 1, □Track 2, □Track 3 will be disabled.

BUsing Database: Apply database for encoding. Browse: browse the path for a

database. Encoding Data Start From: Decide which data to start encoding from a database.

Notice: The database function is for the user who needs encoding by database but is not using Card Desiree CS as their application program.

CEncoding Port: The information about the connection port.

DTimes of Retrying: After finishing encoding, the encoder will automatically read the data for verification purposes. If the reading fails, the device can be set to repeat the process according to the setting of the user.

EDatabase Sample: There is a Database Sample for your reference. The format of a database must match this sample. After expressing this button, it will show the data samples as follows:

1 ABCDEFRG

2 12345678

3 2468024680
