Dell NU229, ATG E6400, PP27L specifications Bottom View, Battery Removal

Page 10

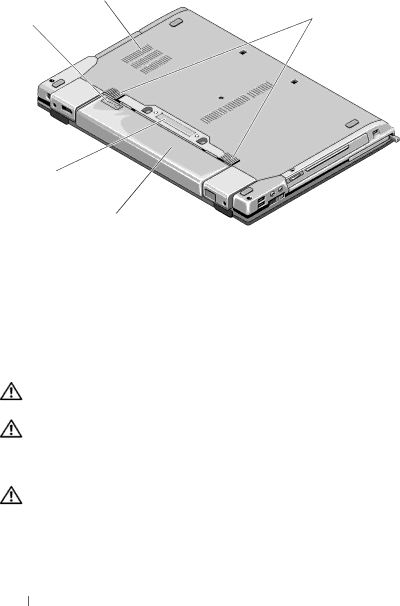

Bottom View



2

1

3





5







4





1

battery charge gauge

2

air vents

3

battery latch release

4

battery

5docking device connector

NOTE: Remove the protective panel on the docking device connector before docking the computer.

Battery Removal

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.

CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only with a compatible battery purchased from Dell. The battery is designed to work with your Dell computer. Do not use a battery from other computers with your computer.

CAUTION: Before removing or replacing the battery, turn off the computer, disconnect the AC adapter from the electrical outlet and the computer, disconnect the modem from the wall connector and computer, and remove any other external cables from the computer.
