Page 20

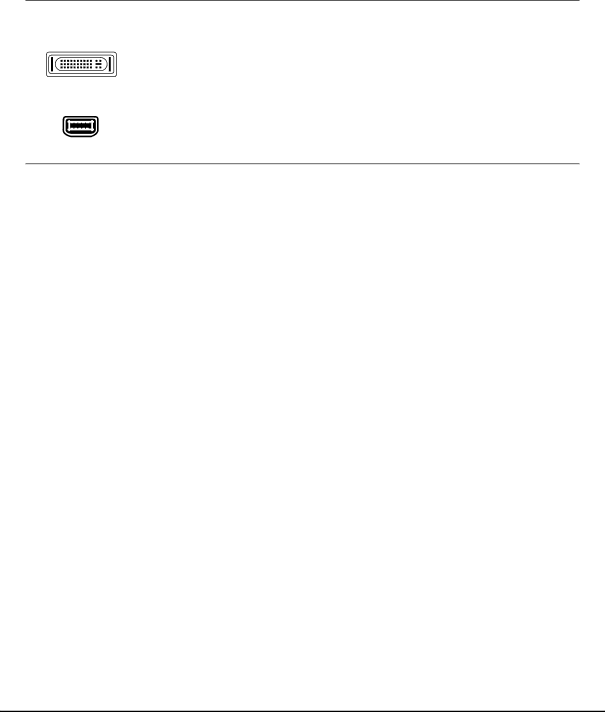

Apple ADC connector

Mini-VGA port

If connecting to an Apple ADC or mini-VGA connection, you will need to obtain an appropriate adapter. Adapters can be purchased at various retail outlets.

For ADC operation, plug the Cintiq video cable into the ADC to DVI-I adapter. Then plug the ADC adapter end into the ADC connector on your video card.

For an Apple mini-VGA connector, plug the Cintiq video cable into the VGA to DVI-I adapter (supplied with Cintiq). Plug the mini-VGA adapter into the computer’s mini-VGA port. Then plug the male and female VGA connectors together.

•Connect the power adapter to Cintiq. See – C – on the next page.

•Then connect the adapter’s power cable and plug the adapter into an AC outlet. See – D –

•Turn on Cintiq. The power LED will light orange.

Installation
