BASIC SETUP

CONNECTING ADDITIONAL DEVICES CONNECTING A USB MOUSE

Connect the included USB mouse before powering on the CV503-8CH. This will speed up the initializing process as well as make the DVR easier to use.

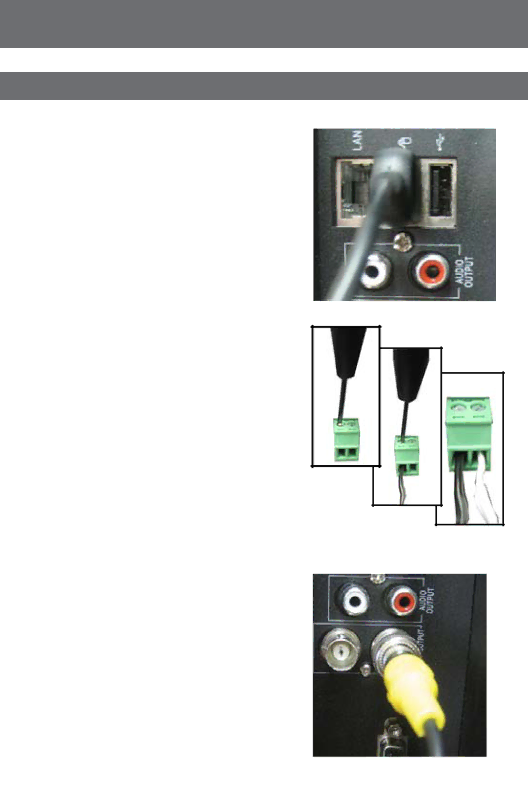

1.Plug the USB connection on the mouse into the

top USB connection on the left side of the DVR marked with a mouse icon.

CONNECTING A PTZ CAMERA

The CV503-8CH supports a 2 wire RS-485 connection for a PTZ camera to be connected (PTZ camera not included). Please see the PTZ camera manual for further instructions on required PTZ settings.

To connect a two-wire PTZ camera:

1.With a small flat head screwdriver, press down on the plastic RS485 screw to open the port.

2.With the screw pushed down, insert the wire into the wire port.

3.Release the screw to lock the wire in place. Pull lightly on the wire to test for a secure connection.

4.For further instruction on connecting your PTZ camera, please consult the PTZ camera’s instruction manual.

SVAT ELECTRONICS

nowyoucansee

Plug Mouse into USB port

1.

2.

3.

CONNECTING A SPOT MONITOR

Plug RCA cable to Video Output

The CV503-8CH supports up to two spot monitors in addition to your 19” LCD screen.

To Connect a Spot Monitor:

1.Connect a BNC-to-RCA connector to the video output jack, labeled “VIDEO OUTPUT.” This is located on the left side of the LCD-DVR.

2.Plug the included RCA cable into the BNC connector.

3.Attach the other end of the RCA cable to a yellow RCA video input on your tv/monitor.
