Getting started

Wall mount installation

Wall mount to tabletop installation

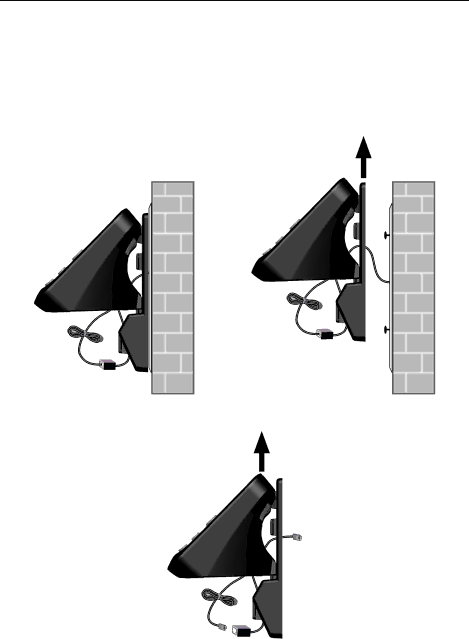

To change the telephone base from the wall mount installation to tabletop installation, follow the steps below.

1.Unplug the large end of the larger power adapter from the electrical outlet.

2.If the telephone line cord and power adapter cord are bundled, untie them first. Slide the wall mount bracket up and remove it from the wall mounting plate. Unplug the end of the telephone line cord from the telephone wall jack.

3. Lift the telephone base up to detach it from the wall mount bracket.

4.Refer to Telephone base and charger installation on page 4 to install the telephone base.
