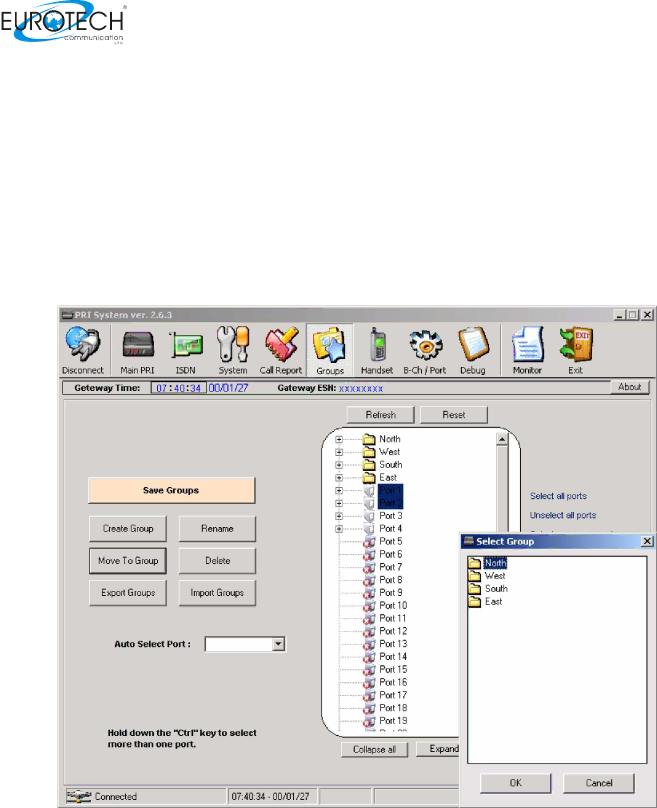

2.Press [Create Group] button. A new group appears at the bottom of the Port list.

3.Type a name for the new group and click outside the selected area. A group can be renamed by selecting it and pressing [Rename] button.

4.Define the ports in each group:

a.Select a port

b.Press [Move to Group] button. The Select Group window opens

c.Select the desired group of the port.

5.When finished defining groups, press [Save Groups] button to send the group configuration to the Multi-Cell unit.

After defining groups, set time tables, make dial settings and define channel locks as described in the following chapter.
