Chapter 5: Configuration - Port and SIM

This chapter details port dial settings, as well as time tables and channel locks for SIMs.

Chapter 5.1: Define Dial Settings for Each Port

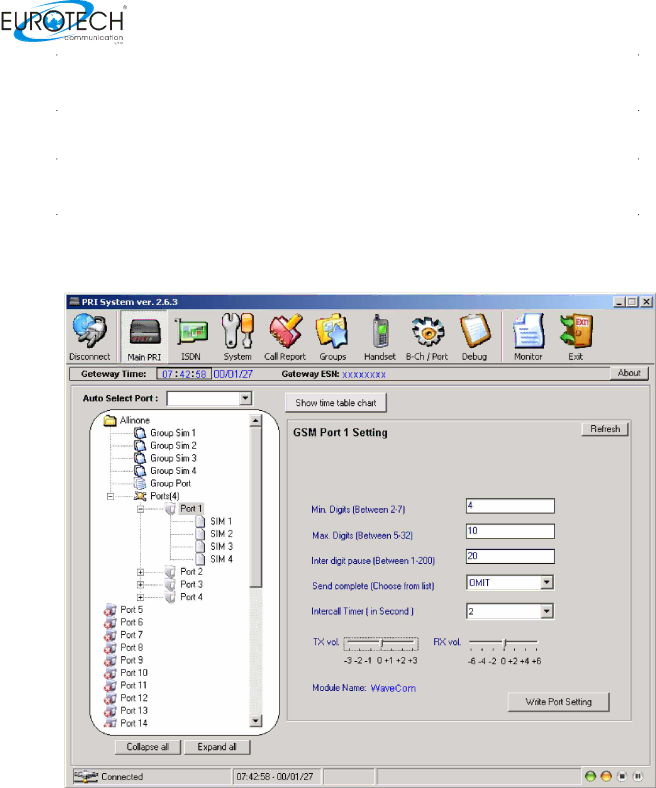

Press [Main PRI] button to define dial settings for each port. The Port Setting window opens. To define port dial settings, click a port and proceed as described on the following pages.

Select a caller identification option in the Caller ID list:

To enable the GSM network to set caller ID standards, select ￿By Network￿.

To enable identification of the SIM, select ￿CLIR Show￿.

To disable identification of the SIM, select ￿CLIR Hide￿.
