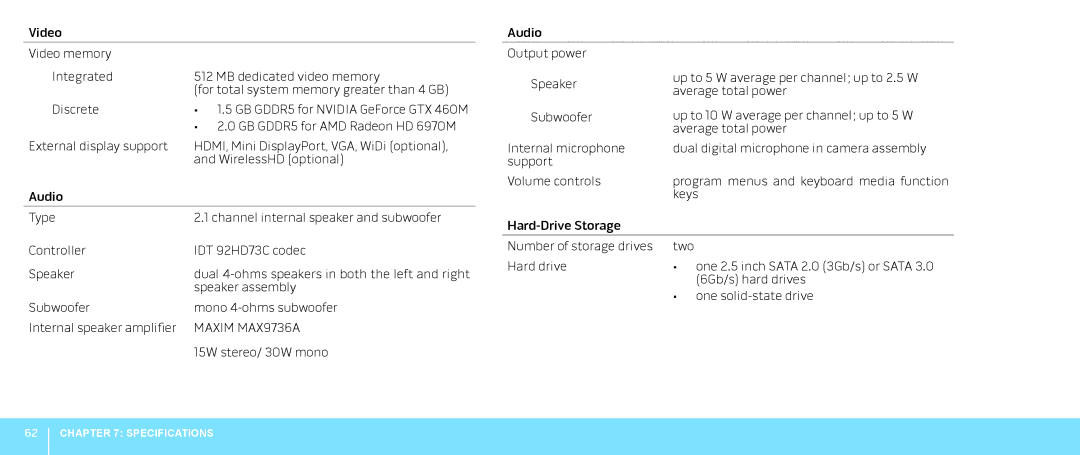

Video

Video memory

Integrated	512 MB dedicated video memory
	(for total system memory greater than 4 GB)
Discrete	• 1.5 GB GDDR5 for NVIDIA GeForce GTX 460M
	• 2.0 GB GDDR5 for AMD Radeon HD 6970M
External display support	HDMI, Mini DisplayPort, VGA, WiDi (optional),
	and WirelessHD (optional)
Audio
Type	2.1 channel internal speaker and subwoofer
Controller	IDT 92HD73C codec
Speaker	dual 4-ohms speakers in both the left and right
	speaker assembly
Subwoofer	mono 4-ohms subwoofer
Internal speaker amplifier	MAXIM MAX9736A
	15W stereo/ 30W mono

Audio

Output power

	Speaker	up to 5 W average per channel; up to 2.5 W
	Speaker	average total power
		average total power
	Subwoofer	up to 10 W average per channel; up to 5 W
		average total power
	Internal microphone	dual digital microphone in camera assembly
	support
	Volume controls	program menus and keyboard media function
		keys
	Hard-Drive Storage
	Number of storage drives	two
	Hard drive	• one 2.5 inch SATA 2.0 (3Gb/s) or SATA 3.0
		(6Gb/s) hard drives
		• one solid-state drive

62

CHAPTER 7: SPECIFICATIONS
